NSK 6912ZZ Bearing

NSK 6912ZZ Deep groove ball bearings

Also known as : 6912ZZ, 61912-2Z

  • Inside Diameter: 60 mm
  • Outside Diameter: 85 mm
  • Width: 13 mm
  • Basic dynamic load rating: 19.4 kN
  • Basic static load rating: 16.3 kN

Inquire Now

NSK 6912ZZ Bearing

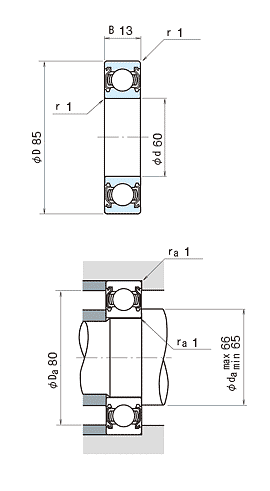

NSK 6912ZZ Bearing details

model 6912ZZ
d 60 mm
D 85 mm
B 13 mm
rmin. 1.0 mm
Cr 19400 N
1980 kgf
C0r 16300 N
1660 kgf
Limiting speeds 7500 min-1 (Grease)
f0 16.2 (Factor)
da min 65 mm
da max 66 mm
Da 80 mm
ra 1 mm
Mass 0.192 kg (approx.)

NSK 6912ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.
