FAG QJ330-N2-MPA bearings | Dimensions: 150x320x65mm
Also known as : QJ330-N2-MPA
- Inside Diameter: 150 mm
- Outside Diameter: 320 mm
- Width: 65 mm
- Basic dynamic load rating: 510 kN
- Basic static load rating: 730 kN
FAG QJ330-N2-MPA Bearing

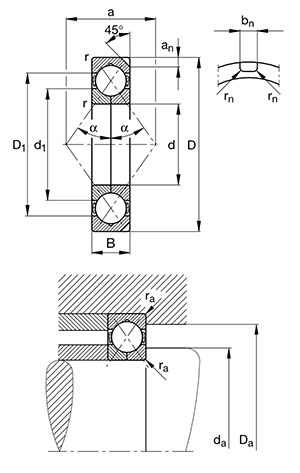

FAG QJ330-N2-MPA Bearing details
| Number | QJ330-N2-MPA | |
|---|---|---|
| Type |
Four point contact bearings main dimensions to DIN 628-4, can be dismantled, with split inner ring, with two retaining slots |
|
| d | 150mm | |
| D | 320mm | |
| B | 65mm | |
| 45° | Groove angle | |
| a | 165mm | |
| an | 12,7mm | |
| bn | 10,5mm | |
| D1 | 261mm | |
| Da max | 303mm | |
| d1 | 211,2mm | |
| da min | 167mm | |
| ra max | 3mm | |
| rmin | 4mm | |
| rn | 2mm | |
| α | 35° | Contact angle |
| m | 28kg | Mass |
| Cr | 510000N | Basic dynamic load rating, radial |
| C0r | 730000N | Basic static load rating, radial |
| Cur | 26000N | Fatigue limit load, radial |
| nG | 36501/min | Limiting speed |
| nϑr | 18701/min | Reference speed |
Nodes bearings have FAG QJ330-N2-MPA bearings in stock, FAG bearings, main dimensions to DIN 628-4, can be dismantled, with split inner ring, with two retaining slots.
