FAG HSS7000-E-T-P4S Bearing

FAG HSS7000-E-T-P4S spindle bearings | 10x26x8mm

Also known as : HSS7000-E-T-P4S

  • Inside Diameter: 10 mm
  • Outside Diameter: 26 mm
  • Width: 8 mm
  • Basic dynamic load rating: 2.35 kN
  • Basic static load rating: 0.89 kN

Inquire Now


FAG HSS7000-E-T-P4S Bearing

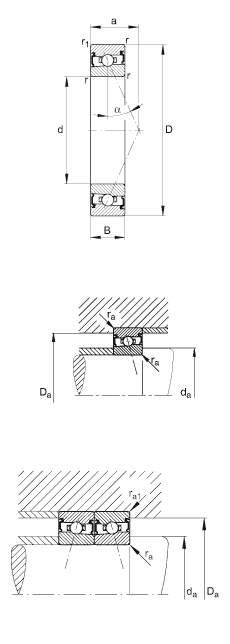

FAG HSS7000-E-T-P4S Bearing details

Number HSS7000-E-T-P4S
Type FAG spindle bearings
adjusted, in pairs or sets, contact angle a = 25°, lip seals on both sides, non-contact, restricted tolerances

d 10 mm
D 26 mm
B 8 mm
a 8,2 mm
Da 22 mm  Tolerance: H12
da 14 mm  Tolerance: h12
r1 min 0,3 mm
ra max 0,3 mm
ra1 max 0,1 mm
rmin 0,3 mm
α 25 °  Contact angle
m 0,023 kg  ≈ Mass
Cr 2350 N  Basic dynamic load rating, radial
C0r 890 N  Basic static load rating, radial
Cur 92 N  Fatigue limit load, radial
nG Fett 85000 1/min  Limiting speed for grease lubrication

The limiting speeds are based on elastically preloaded single bearings.
FV L 15 N  Preload force
FV M 45 N  Preload force
FV H 90 N  Preload force
KaE L 43 N  Lift-off force
KaE M 133 N  Lift-off force
KaE H 273 N  Lift-off force
ca L 26,8 N/µm  Axial rigidity
ca M 40,3 N/µm  Axial rigidity
ca H 53 N/µm  Axial rigidity

Nodes bearings have FAG HSS7000-E-T-P4S spindle bearings in stock, FAG bearings, precision spindle bearings, adjusted, in pairs or sets, contact angle α = 25°, lip seals on both sides, non-contact, restricted tolerances.

FAG HSS7000-E-T-P4S bearing cross reference

NSK 7000C bearing
10mm x 26mm x 8mm
NSK 7000A bearing
10mm x 26mm x 8mm
NSK 7000ADB bearing
10mm x 26mm x 8mm
NSK 7000CDB bearing
10mm x 26mm x 8mm
NSK 7000ADF bearing
10mm x 26mm x 8mm
NSK 7000CDF bearing
10mm x 26mm x 8mm
NSK 7000ADT bearing
10mm x 26mm x 8mm
NSK 7000CDT bearing
10mm x 26mm x 8mm
FAG B7000-C-T-P4S bearing
10mm x 26mm x 8mm
FAG B7200-C-T-P4S bearing
10mm x 30mm x 9mm
FAG B7000-E-T-P4S bearing
10mm x 26mm x 8mm
