FAG NJ319-E-XL-M1-C3 Bearing

NJ319-E-XL-M1-C3 FAG cylindrical roller bearings

Also known as : NJ319ECM

• Inside Diameter: 95 mm
• Outside Diameter: 200 mm
• Width: 45 mm
• Basic dynamic load rating: 390 kN
• Basic static load rating: 380 kN

Inquire Now

FAG NJ319-E-XL-M1-C3 Bearing

NJ319-E-XL-M1-C3 FAG

Part Number	NJ319-E-XL-M1-C3
Brand	FAG
Description:	Cylindrical roller bearing
Cage	M1	Two Piece Brass Cage Roller Guided
Radial internal clearance	C3	Radial internal clearance greater than Normal

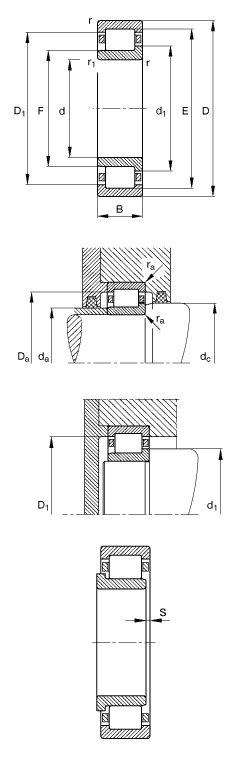

Main Dimensions & Performance Date
d	95 mm	Bore diameter
D	200 mm	Outside diameter
B	45 mm	Width
Cr	390000 N	Basic dynamic load rating, radial
C0r	380000 N	Basic static load rating, radial
Cur	65000 N	Fatigue load limit, radial
nG	6100 1/min	Limiting speed
m	7.1 kg	Weight
Mounting dimensions
da min	109 mm	Minimum diameter shaft shoulder
da max	119 mm	Maximum diameter of shaft shoulder
Da max	186 mm	Maximum diameter of housing shoulder
ra max	2.5 mm	Maximum recess radius
Dimensions
r min	3 mm	Minimum chamfer dimension
r1 min	3 mm	Minimum chamfer dimension
s	1.4 mm	Axial displacement
E	177.5 mm	Raceway diameter outer ring
F	121.5 mm	Raceway diameter inner ring
D1 min	169.62 mm	Minimum rib diameter outer ring
d1	132 mm	Maximum rib diameter inner ring
