IKO POS5EC rod ends | d:5,d2:16,l2:41mm
Also known as : POS5EC
- d: 5 mm
- d2: 16 mm
- Height: 41 mm
- Basic dynamic load rating: 6.54 kN
- Basic static load rating: 3.34 kN
IKO POS5EC

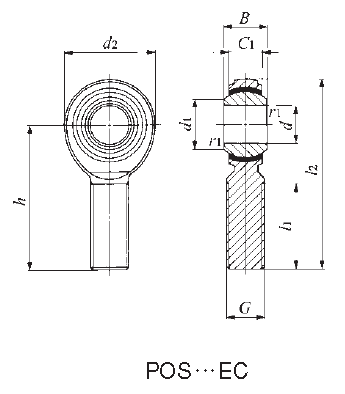

IKO POS5EC Bearing details
| Identification number | POS5EC |
|---|---|
| Type | Maintenance-free type PILLOBALL Rod ends |
| Mass | 12.5 g |
| d | 5 mm |
| Thread G | M5X0.8 |
| d2 | 16 mm |
| C1 | 6 mm |
| B | 8 mm |
| d1 | 7.7 mm |
| l2 | 41 mm |
| h | 33 mm |
| l1 | 20 mm |
| r1s min | 0.2 mm |
| Ball dia. | 11.112 mm |
| Dynamic load capacity | 6.54 kN |
| Static load capacity | 6.54 kN |
IKO POS5EC rod ends is available from stock, Maintenance-free type PILLOBALL rod ends With Male Thread.
