INA 30/6-2RS bearings
Also known as : 30/6-2RS
- Inside Diameter: 6 mm
- Outside Diameter: 17 mm
- Width: 9 mm
- Basic dynamic load rating: 3.05 kN
- Basic static load rating: 1.4 kN
INA 30/6-2RS Bearing

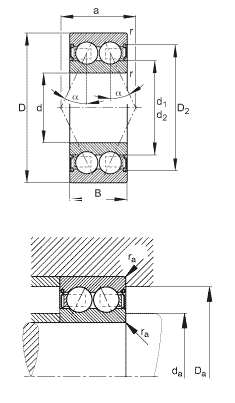

INA 30/6-2RS Bearing details
| d | 6 mm | |
|---|---|---|
| D | 17 mm | |
| B | 9 mm | |
| a | 8,8 mm | |
| D2 | 14,8 mm | |
| Da max | 15 mm | |
| d2 | 8,3 mm | |
| da min | 8 mm | |
| ra max | 0,3 mm | |
| rmin | 0,3 mm | |
| α | 25 ° | Contact angle |
| m | 0,011 kg | Mass |
| Cr | 3050 N | Basic dynamic load rating, radial |
| C0r | 1400 N | Basic static load rating, radial |
| Cur | 72 N | Fatigue limit load, radial |
| nG | 28000 1/min | Limiting speed |
As INA bearing distributor, Nodes bearings have INA 30/6-2RS angular contact ball bearings in stock.
INA 30/6-2RS bearing cross reference
FAG 30/6-B-TVH bearing
6mm x 17mm x 9mm
FAG 30/6-B-2RSR-TVH bearing
6mm x 17mm x 9mm
