INA 3206-2RS Bearing

INA 3206-2RS bearings

Also known as : 3206-2RS

  • Inside Diameter: 30 mm
  • Outside Diameter: 62 mm
  • Width: 23.8 mm
  • Basic dynamic load rating: 31 kN
  • Basic static load rating: 22.2 kN

Inquire Now


INA 3206-2RS Bearing

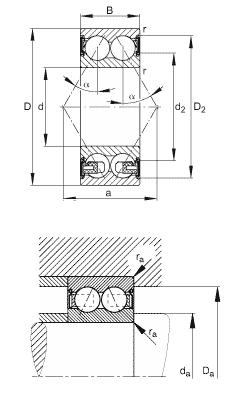

INA 3206-2RS Bearing details

d 30 mm
D 62 mm
B 23,8 mm
a 36,4 mm
D2 55,8 mm
Da max 56,4 mm
d2 40,3 mm
da min 35,6 mm
ra max 1 mm
rmin 1 mm
α 30 °  Contact angle
m 0,29 kg  Mass
Cr 31000 N  Basic dynamic load rating, radial
C0r 22200 N  Basic static load rating, radial
Cur 1490 N  Fatigue limit load, radial
nG 9000 1/min  Limiting speed

As INA bearing distributor, Nodes bearings have INA 3206-2RS angular contact ball bearings in stock.

INA 3206-2RS bearing cross reference

SKF 3206 A bearing
30mm x 62mm x 23.8mm
SKF 3206 A/C3 bearing
30mm x 62mm x 23.8mm
SKF 3206 ATN9 bearing
30mm x 62mm x 23.8mm
SKF 3206 A-2Z bearing
30mm x 62mm x 23.8mm
SKF 3206 A-2RS1 bearing
30mm x 62mm x 23.8mm
INA 3206-2Z bearing
30mm x 62mm x 23.8mm
INA 3206-2Z-C3 bearing
30mm x 62mm x 23.8mm
FAG 3206-BD-XL bearing
30mm x 62mm x 23.8mm
FAG 3206-BD-XL-TVH bearing
30mm x 62mm x 23.8mm
NTN 3206S bearing
30 x 62 x 23.8 mm
