INA GE25-XL-KRR-B Bearing

INA GE25-XL-KRR-B bearing | 25x52x44.5 mm

Also known as : GE25-XL-KRR-B

  • Inside Diameter: 25 mm
  • Outside Diameter: 52 mm
  • Width: 44.5 mm
  • Basic dynamic load rating: 14.9 kN
  • Basic static load rating: 7.8 kN

Inquire Now

INA GE25-XL-KRR-B Bearing

INA GE25-XL-KRR-B Bearing details

Number GE25-XL-KRR-B
Type Radial insert ball bearings
spherical outer ring, location by eccentric locking collar, R seals on both sides

d 25mm
DSP 52mm
B1 44,5mm
B 34,9mm
C 15mm
C2 16,7mm
Ca 4,1mm
D1 42,5mm
d1 33,8mm
d3 max 37,5mm
S 17,5mm
W 3mm
m 0,25kg Mass
Cr 14900N Basic dynamic load rating, radial
C0r 7800N Basic static load rating, radial
Cur 395N Fatigue limit load, radial
f0 13,8 Calculation factor

As INA bearing distributor, Nodes bearings have INA GE25-XL-KRR-B Insert ball bearings in stock. GE25-XL-KRR-B, spherical outer ring, location by eccentric locking collar, R seals on both sides.

INA GE25-XL-KRR-B bearing cross reference

IKO GE25EC bearing
25mm x 42mm x 20mm
IKO GE25ES bearing
25mm x 42mm x 20mm
IKO GE25ES-2RS bearing
25mm x 42mm x 20mm
IKO GE25GS bearing
25mm x 47mm x 28mm
IKO GE25GS-2RS bearing
25mm x 47mm x 28mm
SKF GE25ES-2RS bearing
25mm x 42mm x 20mm

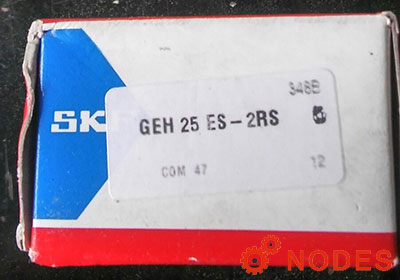

SKF GEH25ES-2RS bearing
25mm x 47mm x 28mm
SKF GEH25C bearing
25mm x 47mm x 28mm
INA GE25-DO bearing
25mm x 42mm x 20mm
INA GE25-DO-2RS bearing
25mm x 42mm x 20mm
INA GE25-FO-2RS bearing
25mm x 47mm x 28mm
INA GE25-PB bearing
25mm x 47mm x 31mm
