INA NK8/12-TV-XL needle bearings
Also known as : NK8/12-TV-XL
- Inside Diameter: 8 mm
- Outside Diameter: 15 mm
- Width: 12 mm
- Basic dynamic load rating: 4.45 kN
- Basic static load rating: 4.1 kN
INA NK8/12-TV-XL Bearing
INA NK8/12-TV-XL Bearing details
| model | NK8/12-TV-XL |
|---|---|
| Fw | 8 mm |
| D | 15 mm |
| C | 12 mm |
| rmin | 0.3 mm |
| Cr | 4450 N |
| C0r | 4100 N |
| Cur | 690 N, Fatigue limit load, radial |
| Limiting speed | 32500 1/min |
| Reference speed | 37000 1/min |
| Suitable sealing ring | SD8X15X3 |
| mass | 8.7 g |
As INA bearing distributor, Nodes bearings have INA NK8/12-TV-XL needle bearings in stock, light series.
INA NK8/12-TV-XL bearing cross reference
INA HK0808 bearing
8mm x 12mm x 8mm

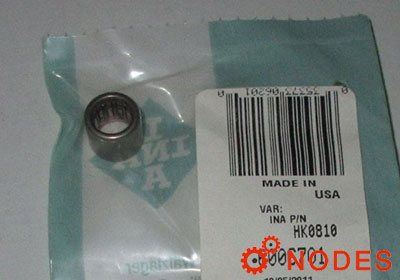

INA HK0810 bearing
8mm x 12mm x 10mm
INA HK0810-2RS bearing
8mm x 12mm x 10mm

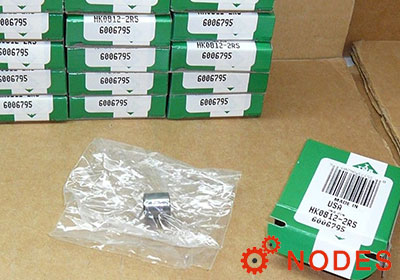

INA HK0812-2RS bearing
8mm x 12mm x 12mm
INA HK0810-RS bearing
8mm x 12mm x 10mm
INA HK0812-RS bearing
8mm x 12mm x 12mm
INA HN0808 bearing
8mm x 12mm x 8mm
INA IR8X12X10,5-XL bearing
8mm x 12mm x 10.5mm
INA IR8X12X12,5-XL bearing
8mm x 12mm x 12.5mm
INA IR8X12X10-IS1-XL bearing
8mm x 12mm x 10mm
INA LR8X12X10,5 bearing
8mm x 12mm x 10.5mm
