INA Drawn cup needle roller bearings with open ends and with closed end are needle roller bearings with a very small radial section height. They comprise thin-walled, drawn cup outer rings and needle roller and cage assemblies which together form a complete unit.

These INA bearings allow the design of particularly compact and easy‑to‑fit bearing arrangements with high radial load carrying capacity. In order to support axial forces, they can also be combined with axial needle roller bearings AXW, series AXW

The majority of the bearings are of a single row design and do not have a lubrication hole. Double row designs have a lubrication hole and the suffix ZW.

INA drawn cup needle roller bearings: HK, HN, HK..-RS, HK..-2RS, BK, BK..-RS.

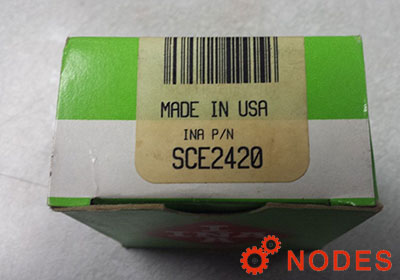

INA SCE2420 shell needle bearings, inch sizes INA

INA SCE2420 shell needle bearings, inch sizes

INA SCE2420 bearing, inch sizes needle roller bearings, Dimensions: 38.1mm x 47.625mm x 31.75mm, Cr: 47500N, C0r: 86000N, Limiting Speeds:6700 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 38.1 mm
  • Outside Diameter: 47.625 mm
  • Width: 31.75 mm
  • Basic dynamic load rating: 47.5 kN
  • Basic static load rating: 47.5 kN

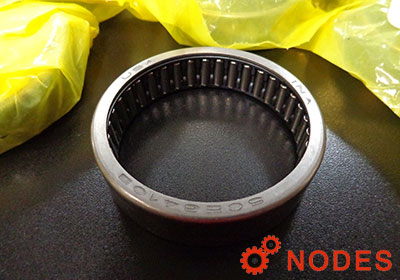

INA SCE3410 shell needle bearings, inch sizes INA

INA SCE3410 shell needle bearings, inch sizes

INA SCE3410 bearing, inch sizes needle roller bearings, Dimensions: 53.975mm x 63.5mm x 15.875mm, Cr: 31000N, C0r: 57000N, Limiting Speeds:4850 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 53.975 mm
  • Outside Diameter: 63.5 mm
  • Width: 15.875 mm
  • Basic dynamic load rating: 31 kN
  • Basic static load rating: 31 kN

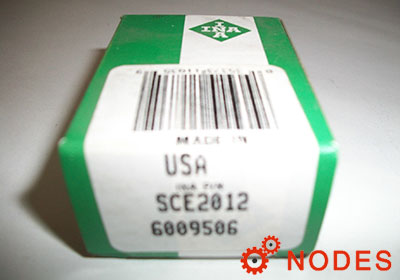

INA SCE2012 shell needle bearings, inch sizes INA

INA SCE2012 shell needle bearings, inch sizes

INA SCE2012 bearing, inch sizes needle roller bearings, Dimensions: 31.75mm x 38.1mm x 19.05mm, Cr: 21100N, C0r: 39500N, Limiting Speeds:8200 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 31.75 mm
  • Outside Diameter: 38.1 mm
  • Width: 19.05 mm
  • Basic dynamic load rating: 21.1 kN
  • Basic static load rating: 21.1 kN

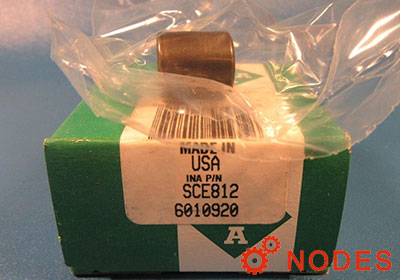

INA SCE812 shell needle bearings, inch sizes INA

INA SCE812 shell needle bearings, inch sizes

INA SCE812 bearing, inch sizes needle roller bearings, Dimensions: 12.7mm x 17.462mm x 19.05mm, Cr: 9900N, C0r: 14300N, Limiting Speeds:19500 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 12.7 mm
  • Outside Diameter: 17.462 mm
  • Width: 19.05 mm
  • Basic dynamic load rating: 9.9 kN
  • Basic static load rating: 9.9 kN

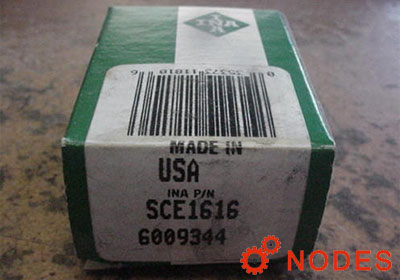

INA SCE1616 shell needle bearings, inch sizes INA

INA SCE1616 shell needle bearings, inch sizes

INA SCE1616 bearing, inch sizes needle roller bearings, Dimensions: 25.4mm x 31.75mm x 25.4mm, Cr: 24800N, C0r: 45500N, Limiting Speeds:10100 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 25.4 mm
  • Outside Diameter: 31.75 mm
  • Width: 25.4 mm
  • Basic dynamic load rating: 24.8 kN
  • Basic static load rating: 24.8 kN

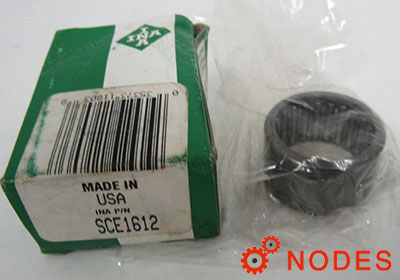

INA SCE1612 shell needle bearings, inch sizes INA

INA SCE1612 shell needle bearings, inch sizes

INA SCE1612 bearing, inch sizes needle roller bearings, Dimensions: 25.4mm x 31.75mm x 19.05mm, Cr: 18000N, C0r: 30000N, Limiting Speeds:10100 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 25.4 mm
  • Outside Diameter: 31.75 mm
  • Width: 19.05 mm
  • Basic dynamic load rating: 18 kN
  • Basic static load rating: 18 kN

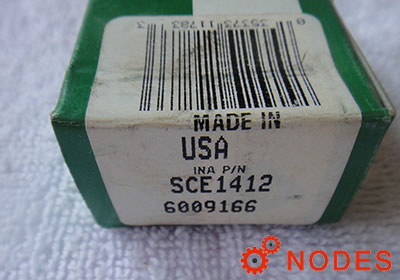

INA SCE1412 shell needle bearings, inch sizes INA

INA SCE1412 shell needle bearings, inch sizes

INA SCE1412 bearing, inch sizes needle roller bearings, Dimensions: 22.225mm x 28.575mm x 19.05mm, Cr: 16900N, C0r: 27000N, Limiting Speeds:11400 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 22.225 mm
  • Outside Diameter: 28.575 mm
  • Width: 19.05 mm
  • Basic dynamic load rating: 16.9 kN
  • Basic static load rating: 16.9 kN

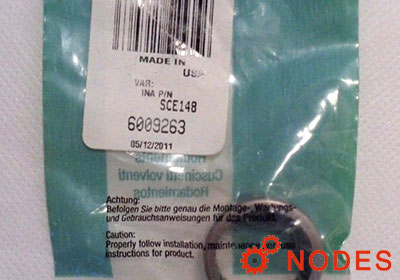

INA SCE148 shell needle bearings, inch sizes INA

INA SCE148 shell needle bearings, inch sizes

INA SCE148 bearing, inch sizes needle roller bearings, Dimensions: 22.225mm x 28.575mm x 12.7mm, Cr: 11200N, C0r: 15800N, Limiting Speeds:11400 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 22.225 mm
  • Outside Diameter: 28.575 mm
  • Width: 12.7 mm
  • Basic dynamic load rating: 11.2 kN
  • Basic static load rating: 11.2 kN

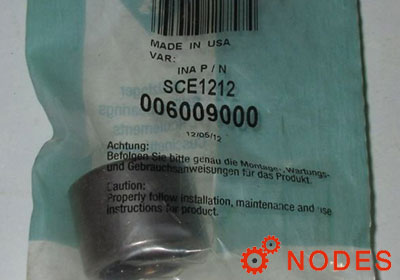

INA SCE1212 shell needle bearings, inch sizes INA

INA SCE1212 shell needle bearings, inch sizes

INA SCE1212 bearing, inch sizes needle roller bearings, Dimensions: 19.05mm x 25.4mm x 19.05mm, Cr: 15400N, C0r: 22100N, Limiting Speeds:13100 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 19.05 mm
  • Outside Diameter: 25.4 mm
  • Width: 19.05 mm
  • Basic dynamic load rating: 15.4 kN
  • Basic static load rating: 15.4 kN

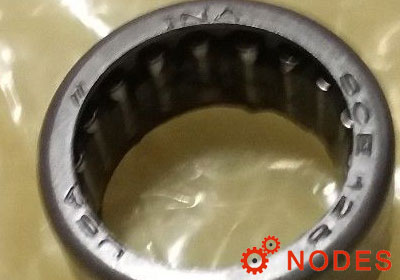

INA SCE128 shell needle bearings, inch sizes INA

INA SCE128 shell needle bearings, inch sizes

INA SCE128 bearing, inch sizes needle roller bearings, Dimensions: 19.05mm x 25.4mm x 12.7mm, Cr: 9800N, C0r: 12500N, Limiting Speeds:13100 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 19.05 mm
  • Outside Diameter: 25.4 mm
  • Width: 12.7 mm
  • Basic dynamic load rating: 9.8 kN
  • Basic static load rating: 9.8 kN

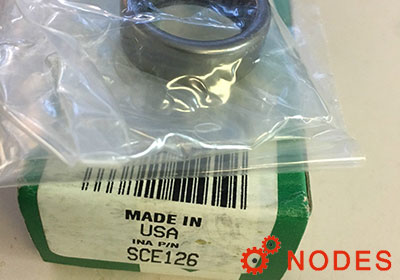

INA SCE126 shell needle bearings, inch sizes INA

INA SCE126 shell needle bearings, inch sizes

INA SCE126 bearing, inch sizes needle roller bearings, Dimensions: 19.05mm x 25.4mm x 9.525mm, Cr: 7100N, C0r: 8300N, Limiting Speeds:13100 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 19.05 mm
  • Outside Diameter: 25.4 mm
  • Width: 9.525 mm
  • Basic dynamic load rating: 7.1 kN
  • Basic static load rating: 7.1 kN
INA SCE1012 shell needle bearings, inch sizes INA

INA SCE1012 shell needle bearings, inch sizes

INA SCE1012 bearing, inch sizes needle roller bearings, Dimensions: 15.875mm x 20.638mm x 19.05mm, Cr: 12100N, C0r: 19700N, Limiting Speeds:16000 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 15.875 mm
  • Outside Diameter: 20.638 mm
  • Width: 19.05 mm
  • Basic dynamic load rating: 12.1 kN
  • Basic static load rating: 12.1 kN
INA SCE1010 shell needle bearings, inch sizes INA

INA SCE1010 shell needle bearings, inch sizes

INA SCE1010 bearing, inch sizes needle roller bearings, Dimensions: 15.875mm x 20.638mm x 15.875mm, Cr: 10400N, C0r: 16300N, Limiting Speeds:16000 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 15.875 mm
  • Outside Diameter: 20.638 mm
  • Width: 15.875 mm
  • Basic dynamic load rating: 10.4 kN
  • Basic static load rating: 10.4 kN
INA SCE108 shell needle bearings, inch sizes INA

INA SCE108 shell needle bearings, inch sizes

INA SCE108 bearing, inch sizes needle roller bearings, Dimensions: 15.875mm x 20.638mm x 12.7mm, Cr: 8100N, C0r: 12000N, Limiting Speeds:16000 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 15.875 mm
  • Outside Diameter: 20.638 mm
  • Width: 12.7 mm
  • Basic dynamic load rating: 8.1 kN
  • Basic static load rating: 8.1 kN
INA SCE107 shell needle bearings, inch sizes INA

INA SCE107 shell needle bearings, inch sizes

INA SCE107 bearing, inch sizes needle roller bearings, Dimensions: 15.875mm x 20.638mm x 11.112mm, Cr: 6600N, C0r: 9400N, Limiting Speeds:16000 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 15.875 mm
  • Outside Diameter: 20.638 mm
  • Width: 11.112 mm
  • Basic dynamic load rating: 6.6 kN
  • Basic static load rating: 6.6 kN

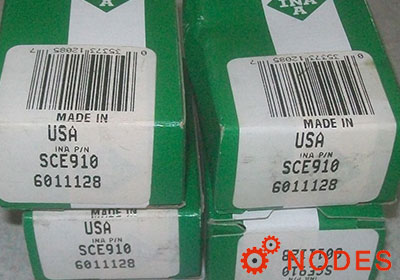

INA SCE910 shell needle bearings, inch sizes INA

INA SCE910 shell needle bearings, inch sizes

INA SCE910 bearing, inch sizes needle roller bearings, Dimensions: 14.288mm x 19.05mm x 15.875mm, Cr: 9400N, C0r: 14000N, Limiting Speeds:17600 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 14.288 mm
  • Outside Diameter: 19.05 mm
  • Width: 15.875 mm
  • Basic dynamic load rating: 9.4 kN
  • Basic static load rating: 9.4 kN

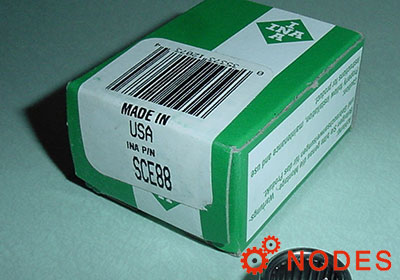

INA SCE88 shell needle bearings, inch sizes INA

INA SCE88 shell needle bearings, inch sizes

INA SCE88 bearing, inch sizes needle roller bearings, Dimensions: 12.7mm x 17.462mm x 12.7mm, Cr: 6900N, C0r: 9000N, Limiting Speeds:19500 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 12.7 mm
  • Outside Diameter: 17.462 mm
  • Width: 12.7 mm
  • Basic dynamic load rating: 6.9 kN
  • Basic static load rating: 6.9 kN

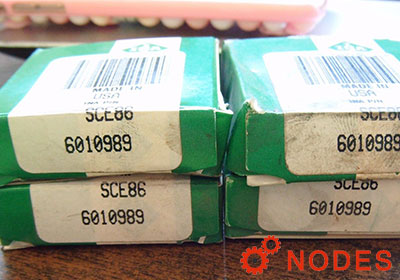

INA SCE86 shell needle bearings, inch sizes INA

INA SCE86 shell needle bearings, inch sizes

INA SCE86 bearing, inch sizes needle roller bearings, Dimensions: 12.7mm x 17.462mm x 9.525mm, Cr: 4650N, C0r: 5400N, Limiting Speeds:19500 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 12.7 mm
  • Outside Diameter: 17.462 mm
  • Width: 9.525 mm
  • Basic dynamic load rating: 4.65 kN
  • Basic static load rating: 4.65 kN

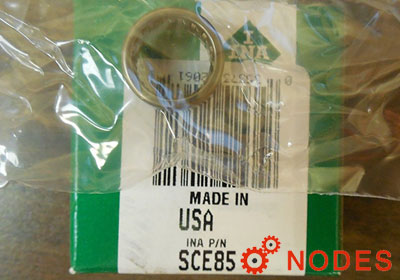

INA SCE85 shell needle bearings, inch sizes INA

INA SCE85 shell needle bearings, inch sizes

INA SCE85 bearing, inch sizes needle roller bearings, Dimensions: 12.7mm x 17.462mm x 7.938mm, Cr: 3650N, C0r: 3950N, Limiting Speeds:19500 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 12.7 mm
  • Outside Diameter: 17.462 mm
  • Width: 7.938 mm
  • Basic dynamic load rating: 3.65 kN
  • Basic static load rating: 3.65 kN

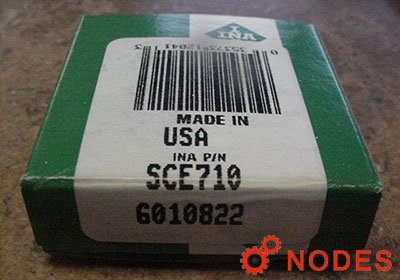

INA SCE710 shell needle bearings, inch sizes INA

INA SCE710 shell needle bearings, inch sizes

INA SCE710 bearing, inch sizes needle roller bearings, Dimensions: 11.112mm x 15.875mm x 15.875mm, Cr: 8100N, C0r: 10700N, Limiting Speeds:21900 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 11.112 mm
  • Outside Diameter: 15.875 mm
  • Width: 15.875 mm
  • Basic dynamic load rating: 8.1 kN
  • Basic static load rating: 8.1 kN
INA SCE78 shell needle bearings, inch sizes INA

INA SCE78 shell needle bearings, inch sizes

INA SCE78 bearing, inch sizes needle roller bearings, Dimensions: 11.112mm x 15.875mm x 12.7mm, Cr: 6400N, C0r: 7800N, Limiting Speeds:21900 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 11.112 mm
  • Outside Diameter: 15.875 mm
  • Width: 12.7 mm
  • Basic dynamic load rating: 6.4 kN
  • Basic static load rating: 6.4 kN
INA SCE68 shell needle bearings, inch sizes INA

INA SCE68 shell needle bearings, inch sizes

INA SCE68 bearing, inch sizes needle roller bearings, Dimensions: 9.525mm x 14.288mm x 12.7mm, Cr: 5800N, C0r: 6600N, Limiting Speeds:25000 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 9.525 mm
  • Outside Diameter: 14.288 mm
  • Width: 12.7 mm
  • Basic dynamic load rating: 5.8 kN
  • Basic static load rating: 5.8 kN
INA SCE59 shell needle bearings, inch sizes INA

INA SCE59 shell needle bearings, inch sizes

INA SCE59 bearing, inch sizes needle roller bearings, Dimensions: 7.938mm x 12.7mm x 14.288mm, Cr: 6000N, C0r: 6600N, Limiting Speeds:29000 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 7.938 mm
  • Outside Diameter: 12.7 mm
  • Width: 14.288 mm
  • Basic dynamic load rating: 6 kN
  • Basic static load rating: 6 kN
INA SCE57 shell needle bearings, inch sizes INA

INA SCE57 shell needle bearings, inch sizes

INA SCE57 bearing, inch sizes needle roller bearings, Dimensions: 7.938mm x 12.7mm x 11.112mm, Cr: 4700N, C0r: 4850N, Limiting Speeds:29000 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 7.938 mm
  • Outside Diameter: 12.7 mm
  • Width: 11.112 mm
  • Basic dynamic load rating: 4.7 kN
  • Basic static load rating: 4.7 kN
INA SCE47 shell needle bearings, inch sizes INA

INA SCE47 shell needle bearings, inch sizes

INA SCE47 bearing, inch sizes needle roller bearings, Dimensions: 6.35mm x 11.112mm x 11.112mm, Cr: 4100N, C0r: 3900N, Limiting Speeds:35000 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 6.35 mm
  • Outside Diameter: 11.112 mm
  • Width: 11.112 mm
  • Basic dynamic load rating: 4.1 kN
  • Basic static load rating: 4.1 kN
INA SCE34-TN shell needle bearings, inch sizes INA

INA SCE34-TN shell needle bearings, inch sizes

INA SCE34-TN bearing, inch sizes needle roller bearings, Dimensions: 4.762mm x 8.731mm x 6.35mm, Cr: 1790N, C0r: 1360N, Limiting Speeds:21000 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 4.762 mm
  • Outside Diameter: 8.731 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 1.79 kN
  • Basic static load rating: 1.79 kN
INA SCE24-TN shell needle bearings, inch sizes INA

INA SCE24-TN shell needle bearings, inch sizes

INA SCE24-TN bearing, inch sizes needle roller bearings, Dimensions: 3.175mm x 6.35mm x 6.35mm, Cr: 1070N, C0r: 740N, Limiting Speeds:31500 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 3.175 mm
  • Outside Diameter: 6.35 mm
  • Width: 6.35 mm
  • Basic dynamic load rating: 1.07 kN
  • Basic static load rating: 1.07 kN
INA SCE188 shell needle bearings, inch sizes INA

INA SCE188 shell needle bearings, inch sizes

INA SCE188 bearing, inch sizes needle roller bearings, Dimensions: 28.575mm x 34.925mm x 12.7mm, Cr: 12800N, C0r: 20200N, Limiting Speeds:9000 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 28.575 mm
  • Outside Diameter: 34.925 mm
  • Width: 12.7 mm
  • Basic dynamic load rating: 12.8 kN
  • Basic static load rating: 12.8 kN
INA HK3518-RS Needle roller bearings INA

INA HK3518-RS Needle roller bearings

INA HK3518-RS bearing, drawn cup needle roller bearings witn open ends, lip seal on one side, Dimensions: 35mm x 42mm x 18mm, Cr: 18700N, C0r: 33500N, Limiting Speeds:4500 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 35 mm
  • Outside Diameter: 42 mm
  • Width: 18 mm
  • Basic dynamic load rating: 18.7 kN
  • Basic static load rating: 18.7 kN
INA HK3016-2RS Needle roller bearings INA

INA HK3016-2RS Needle roller bearings

INA HK3016-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 30mm x 37mm x 16mm, Cr: 12100N, C0r: 18200N, Limiting Speeds:5200 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 30 mm
  • Outside Diameter: 37 mm
  • Width: 16 mm
  • Basic dynamic load rating: 12.1 kN
  • Basic static load rating: 12.1 kN
INA HK1216-2RS Needle roller bearings INA

INA HK1216-2RS Needle roller bearings

INA HK1216-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 12mm x 18mm x 16mm, Cr: 6500N, C0r: 7300N, Limiting Speeds:12000 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 12 mm
  • Outside Diameter: 18 mm
  • Width: 16 mm
  • Basic dynamic load rating: 6.5 kN
  • Basic static load rating: 6.5 kN
INA HK2520-2RS Needle roller bearings INA

INA HK2520-2RS Needle roller bearings

INA HK2520-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 25mm x 32mm x 20mm, Cr: 15600N, C0r: 24000N, Limiting Speeds:6100 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 25 mm
  • Outside Diameter: 32 mm
  • Width: 20 mm
  • Basic dynamic load rating: 15.6 kN
  • Basic static load rating: 15.6 kN
INA HK2516-2RS Needle roller bearings INA

INA HK2516-2RS Needle roller bearings

INA HK2516-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 25mm x 32mm x 16mm, Cr: 11000N, C0r: 15200N, Limiting Speeds:6100 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 25 mm
  • Outside Diameter: 32 mm
  • Width: 16 mm
  • Basic dynamic load rating: 11 kN
  • Basic static load rating: 11 kN
INA HK1816-2RS Needle roller bearings INA

INA HK1816-2RS Needle roller bearings

INA HK1816-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 18mm x 24mm x 16mm, Cr: 8100N, C0r: 10900N, Limiting Speeds:8400 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 18 mm
  • Outside Diameter: 24 mm
  • Width: 16 mm
  • Basic dynamic load rating: 8.1 kN
  • Basic static load rating: 8.1 kN
INA HK1616-2RS Needle roller bearings INA

INA HK1616-2RS Needle roller bearings

INA HK1616-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 16mm x 22mm x 16mm, Cr: 7600N, C0r: 9700N, Limiting Speeds:9300 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 16 mm
  • Outside Diameter: 22 mm
  • Width: 16 mm
  • Basic dynamic load rating: 7.6 kN
  • Basic static load rating: 7.6 kN
INA HK1014-2RS Needle roller bearings INA

INA HK1014-2RS Needle roller bearings

INA HK1014-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 10mm x 14mm x 14mm, Cr: 4400N, C0r: 5100N, Limiting Speeds:14600 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 10 mm
  • Outside Diameter: 14 mm
  • Width: 14 mm
  • Basic dynamic load rating: 4.4 kN
  • Basic static load rating: 4.4 kN
INA HK0812-2RS Needle roller bearings INA

INA HK0812-2RS Needle roller bearings

INA HK0812-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 8mm x 12mm x 12mm, Cr: 2750N, C0r: 2600N, Limiting Speeds:17700 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 8 mm
  • Outside Diameter: 12 mm
  • Width: 12 mm
  • Basic dynamic load rating: 2.75 kN
  • Basic static load rating: 2.75 kN
INA HK2816 Needle roller bearings INA

INA HK2816 Needle roller bearings

INA HK2816 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 28mm x 35mm x 16mm, Cr: 16400N, C0r: 26500N, Limiting Speeds:9200 1/min.

Inquire Now

  • Brand: INA
  • Inside Diameter: 28 mm
  • Outside Diameter: 35 mm
  • Width: 16 mm
  • Basic dynamic load rating: 16.4 kN
  • Basic static load rating: 16.4 kN
