INA SCH1010 Bearing

INA SCH1010 bearing | 15.875x22.225x15.875 mm

Also known as : SCH1010

  • Inside Diameter: 15.875 mm
  • Outside Diameter: 22.225 mm
  • Width: 15.875 mm
  • Basic dynamic load rating: 12.7 kN
  • Basic static load rating: 16.6 kN

Inquire Now


INA SCH1010 Bearing

INA SCH1010 Bearing details

INA Part Number SCH1010
Type Drawn cup needle roller bearings with open ends
heavy series to ABMA 18.2 - 1982, inch sizes

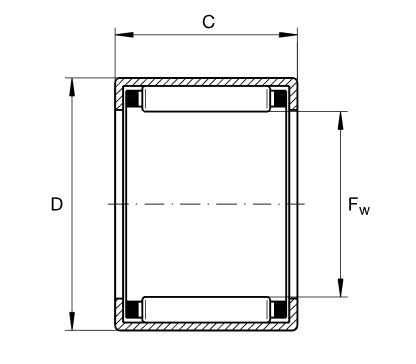

Fw 5/8inch
Fw 15,875mm
D 0,875inch
D 22,225mm
C 0,625inch
C 15,875mm
m 0,035lbs Mass
m 16g Mass
Cr 2850lbf Basic dynamic load rating, radial
Cr 12700N Basic dynamic load rating, radial
C0r 3730lbf Basic static load rating, radial
C0r 16600N Basic static load rating, radial
nG 153001/min Limiting speed

As INA bearing distributor, Nodes bearings have INA SCH1010 Needle roller bearings in stock. SCH1010, Drawn cup needle roller bearings with open ends, heavy series to ABMA 18.2 - 1982, inch sizes.

INA SCH1010 bearing cross reference

INA SCE105 bearing
15.875mm x 20.638mm x 7.938mm
INA SCE107 bearing
15.875mm x 20.638mm x 11.112mm
INA SCE107-1/2 bearing
15.875mm x 20.638mm x 11.91mm
INA SCE108 bearing
15.875mm x 20.638mm x 12.7mm
INA SCE1010 bearing
15.875mm x 20.638mm x 15.875mm
INA SCE1012 bearing
15.875mm x 20.638mm x 19.05mm
INA PI101406 bearing
15.875mm x 22.225mm x 9.525mm
INA PI101408 bearing
15.875mm x 22.225mm x 12.7mm
INA PI101412 bearing
15.875mm x 22.225mm x 19.05mm
INA PI101416 bearing
15.875mm x 22.225mm x 25.4mm
INA NCS1012 bearing
15.875mm x 28.575mm x 19.05mm
INA NCS1016 bearing
15.875mm x 28.575mm x 25.4mm
