INA aligning needle roller bearings comprise drawn outer cups, plastic support rings with a concave inner profile, outer rings with a spherical outside surface, needle roller and cage assemblies and removable inner rings.

INA Aligning needle roller bearings are X-life bearings. These bearings have optimised raceway surfaces. This gives higher load carrying capacity and longer rating life.

Due to the spherical outer ring and the concave support ring, INA aligning bearings can compensate static misalignments between the shaft and housing of up to 3°.

INA aligning needle roller bearings: RPNA, PNA.

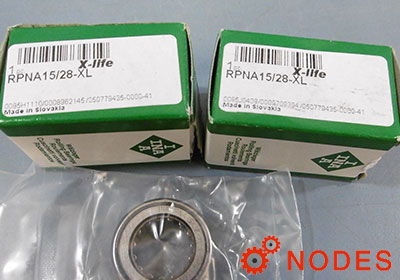

INA RPNA15/28-XL Aligning needle bearings INA

INA RPNA15/28-XL Aligning needle bearings

Nodes bearings have INA RPNA15/28-XL bearings in stock, aligning needle bearings without inner ring, RPNA15/28-XL bearings dimensions: 15mm x 28mm x 12mm, Cr: 7800N, C0r: 7900N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 15 mm
  • Outside Diameter: 28 mm
  • Width: 12 mm
  • Basic dynamic load rating: 7.8 kN
  • Basic static load rating: 7.8 kN

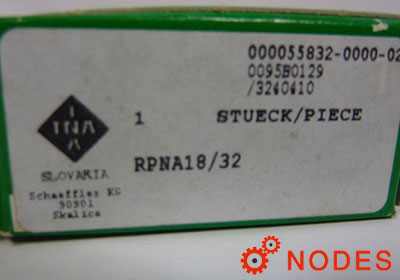

INA RPNA18/32-XL Aligning needle bearings INA

INA RPNA18/32-XL Aligning needle bearings

Nodes bearings have INA RPNA18/32-XL bearings in stock, aligning needle bearings without inner ring, RPNA18/32-XL bearings dimensions: 18mm x 32mm x 16mm, Cr: 14100N, C0r: 16200N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 18 mm
  • Outside Diameter: 32 mm
  • Width: 16 mm
  • Basic dynamic load rating: 14.1 kN
  • Basic static load rating: 14.1 kN

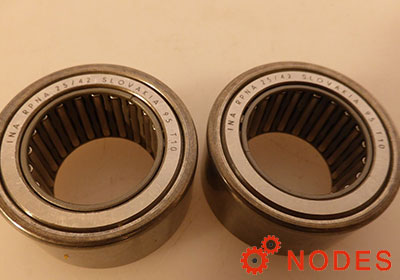

INA RPNA25/42-XL Aligning needle bearings INA

INA RPNA25/42-XL Aligning needle bearings

Nodes bearings have INA RPNA25/42-XL bearings in stock, aligning needle bearings without inner ring, RPNA25/42-XL bearings dimensions: 25mm x 42mm x 20mm, Cr: 21300N, C0r: 30500N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 25 mm
  • Outside Diameter: 42 mm
  • Width: 20 mm
  • Basic dynamic load rating: 21.3 kN
  • Basic static load rating: 21.3 kN

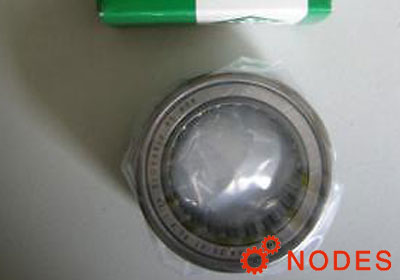

INA RPNA30/47-XL Aligning needle bearings INA

INA RPNA30/47-XL Aligning needle bearings

Nodes bearings have INA RPNA30/47-XL bearings in stock, aligning needle bearings without inner ring, RPNA30/47-XL bearings dimensions: 30mm x 47mm x 20mm, Cr: 25500N, C0r: 36000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 30 mm
  • Outside Diameter: 47 mm
  • Width: 20 mm
  • Basic dynamic load rating: 25.5 kN
  • Basic static load rating: 25.5 kN
INA RPNA35/52-XL Aligning needle bearings INA

INA RPNA35/52-XL Aligning needle bearings

Nodes bearings have INA RPNA35/52-XL bearings in stock, aligning needle bearings without inner ring, RPNA35/52-XL bearings dimensions: 35mm x 52mm x 20mm, Cr: 27500N, C0r: 41500N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 35 mm
  • Outside Diameter: 52 mm
  • Width: 20 mm
  • Basic dynamic load rating: 27.5 kN
  • Basic static load rating: 27.5 kN

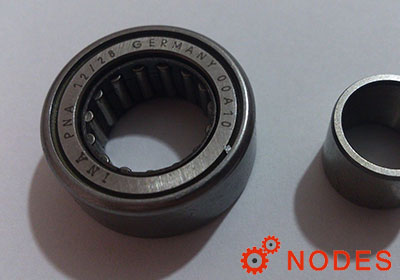

INA PNA12/28-XL Aligning needle bearings INA

INA PNA12/28-XL Aligning needle bearings

Nodes bearings have INA PNA12/28-XL bearings in stock, aligning needle bearings with inner ring, PNA12/28-XL bearings dimensions: 12mm x 28mm x 12mm, Cr: 7800N, C0r: 7900N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 12 mm
  • Outside Diameter: 28 mm
  • Width: 12 mm
  • Basic dynamic load rating: 7.8 kN
  • Basic static load rating: 7.8 kN

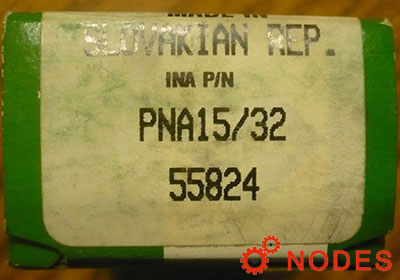

INA PNA15/32-XL Aligning needle bearings INA

INA PNA15/32-XL Aligning needle bearings

Nodes bearings have INA PNA15/32-XL bearings in stock, aligning needle bearings with inner ring, PNA15/32-XL bearings dimensions: 15mm x 32mm x 16mm, Cr: 14100N, C0r: 16200N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 15 mm
  • Outside Diameter: 32 mm
  • Width: 16 mm
  • Basic dynamic load rating: 14.1 kN
  • Basic static load rating: 14.1 kN

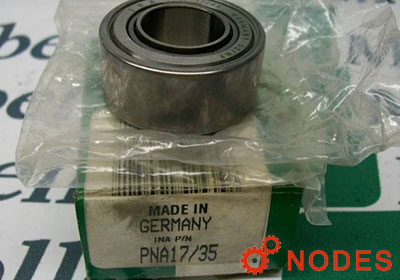

INA PNA17/35-XL Aligning needle bearings INA

INA PNA17/35-XL Aligning needle bearings

Nodes bearings have INA PNA17/35-XL bearings in stock, aligning needle bearings with inner ring, PNA17/35-XL bearings dimensions: 17mm x 35mm x 16mm, Cr: 14600N, C0r: 17500N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 17 mm
  • Outside Diameter: 35 mm
  • Width: 16 mm
  • Basic dynamic load rating: 14.6 kN
  • Basic static load rating: 14.6 kN

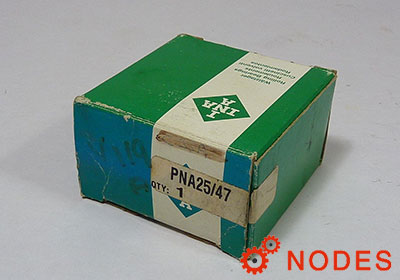

INA PNA25/47-XL Aligning needle bearings INA

INA PNA25/47-XL Aligning needle bearings

Nodes bearings have INA PNA25/47-XL bearings in stock, aligning needle bearings with inner ring, PNA25/47-XL bearings dimensions: 25mm x 47mm x 20mm, Cr: 25500N, C0r: 36000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 25 mm
  • Outside Diameter: 47 mm
  • Width: 20 mm
  • Basic dynamic load rating: 25.5 kN
  • Basic static load rating: 25.5 kN

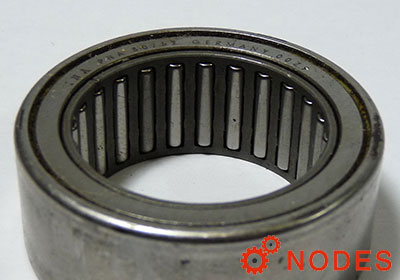

INA PNA30/52-XL Aligning needle bearings INA

INA PNA30/52-XL Aligning needle bearings

Nodes bearings have INA PNA30/52-XL bearings in stock, aligning needle bearings with inner ring, PNA30/52-XL bearings dimensions: 30mm x 52mm x 20mm, Cr: 27500N, C0r: 41500N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 30 mm
  • Outside Diameter: 52 mm
  • Width: 20 mm
  • Basic dynamic load rating: 27.5 kN
  • Basic static load rating: 27.5 kN

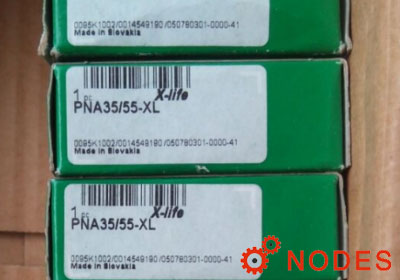

INA PNA35/55-XL Aligning needle bearings INA

INA PNA35/55-XL Aligning needle bearings

Nodes bearings have INA PNA35/55-XL bearings in stock, aligning needle bearings with inner ring, PNA35/55-XL bearings dimensions: 35mm x 55mm x 20mm, Cr: 29500N, C0r: 47000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 35 mm
  • Outside Diameter: 55 mm
  • Width: 20 mm
  • Basic dynamic load rating: 29.5 kN
  • Basic static load rating: 29.5 kN

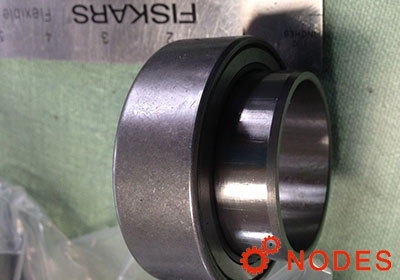

INA PNA40/62-XL Aligning needle bearings INA

INA PNA40/62-XL Aligning needle bearings

Nodes bearings have INA PNA40/62-XL bearings in stock, aligning needle bearings with inner ring, PNA40/62-XL bearings dimensions: 40mm x 62mm x 20mm, Cr: 31000N, C0r: 53000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 40 mm
  • Outside Diameter: 62 mm
  • Width: 20 mm
  • Basic dynamic load rating: 31 kN
  • Basic static load rating: 31 kN
INA RPNA20/35-XL Aligning needle bearings INA

INA RPNA20/35-XL Aligning needle bearings

Nodes bearings have INA RPNA20/35-XL bearings in stock, aligning needle bearings without inner ring, RPNA20/35-XL bearings dimensions: 20mm x 35mm x 16mm, Cr: 14600N, C0r: 17500N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 20 mm
  • Outside Diameter: 35 mm
  • Width: 16 mm
  • Basic dynamic load rating: 14.6 kN
  • Basic static load rating: 14.6 kN
INA RPNA28/44-XL Aligning needle bearings INA

INA RPNA28/44-XL Aligning needle bearings

Nodes bearings have INA RPNA28/44-XL bearings in stock, aligning needle bearings without inner ring, RPNA28/44-XL bearings dimensions: 28mm x 44mm x 20mm, Cr: 24800N, C0r: 34000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 28 mm
  • Outside Diameter: 44 mm
  • Width: 20 mm
  • Basic dynamic load rating: 24.8 kN
  • Basic static load rating: 24.8 kN
INA RPNA40/55-XL Aligning needle bearings INA

INA RPNA40/55-XL Aligning needle bearings

Nodes bearings have INA RPNA40/55-XL bearings in stock, aligning needle bearings without inner ring, RPNA40/55-XL bearings dimensions: 40mm x 55mm x 20mm, Cr: 29500N, C0r: 47000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 40 mm
  • Outside Diameter: 55 mm
  • Width: 20 mm
  • Basic dynamic load rating: 29.5 kN
  • Basic static load rating: 29.5 kN
INA RPNA45/62-XL Aligning needle bearings INA

INA RPNA45/62-XL Aligning needle bearings

Nodes bearings have INA RPNA45/62-XL bearings in stock, aligning needle bearings without inner ring, RPNA45/62-XL bearings dimensions: 45mm x 62mm x 20mm, Cr: 31000N, C0r: 53000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 45 mm
  • Outside Diameter: 62 mm
  • Width: 20 mm
  • Basic dynamic load rating: 31 kN
  • Basic static load rating: 31 kN
INA PNA20/42-XL Aligning needle bearings INA

INA PNA20/42-XL Aligning needle bearings

Nodes bearings have INA PNA20/42-XL bearings in stock, aligning needle bearings with inner ring, PNA20/42-XL bearings dimensions: 20mm x 42mm x 20mm, Cr: 21300N, C0r: 30500N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 20 mm
  • Outside Diameter: 42 mm
  • Width: 20 mm
  • Basic dynamic load rating: 21.3 kN
  • Basic static load rating: 21.3 kN
INA PNA22/44-XL Aligning needle bearings INA

INA PNA22/44-XL Aligning needle bearings

Nodes bearings have INA PNA22/44-XL bearings in stock, aligning needle bearings with inner ring, PNA22/44-XL bearings dimensions: 22mm x 44mm x 20mm, Cr: 24800N, C0r: 34000N.

Inquire Now

  • Brand: INA
  • Inside Diameter: 22 mm
  • Outside Diameter: 44 mm
  • Width: 20 mm
  • Basic dynamic load rating: 24.8 kN
  • Basic static load rating: 24.8 kN
