INA PNA20/42-XL Bearing

INA PNA20/42-XL Aligning needle bearings

Also known as : PNA20/42-XL

• Inside Diameter: 20 mm
• Outside Diameter: 42 mm
• Width: 20 mm
• Basic dynamic load rating: 21.3 kN
• Basic static load rating: 30.5 kN

Inquire Now

INA PNA20/42-XL Bearing

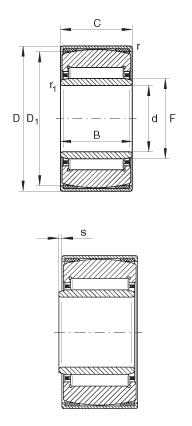

model	PNA20/42-XL
d	20 mm
D	42 mm
C	20 mm
B	20 mm
D1	36.5 mm
F	25 mm
r1 min	0.3 mm
rmin	0.8 mm
s	0.5 mm
Cr	21300 N
C0r	30500 N
Cur	5300 N, Fatigue limit load, radial
Limiting speed	17800 1/min
mass	136 g

As INA bearing distributor, Nodes bearings have INA PNA20/42-XL aligning needle bearings in stock, with inner ring.
