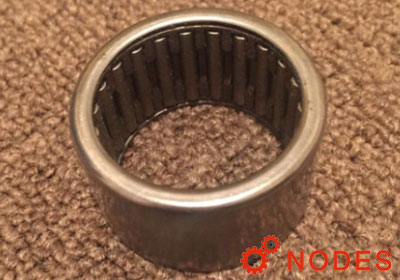

INA SCE2012 shell needle bearings, inch sizes
Also known as : SCE2012, BA2012
- Inside Diameter: 31.75 mm
- Outside Diameter: 38.1 mm
- Width: 19.05 mm
- Basic dynamic load rating: 21.1 kN
- Basic static load rating: 39.5 kN
INA SCE2012 Bearing
INA SCE2012 Bearing details
| model | SCE2012 |
|---|---|
| Fw | 31.75 mm |
| Fw | 1 1/4 inch |
| D | 38.1 mm |
| D | 1.5 inch |
| C | 19.05 mm |
| C | 0.75 inch |
| Cr | 21100 N |
| Cr | 4750 lbf |
| C0r | 39500 N |
| C0r | 8900 lbf |
| Limiting speed | 8200 1/min |
| mass | 37 g |
| mass | 0.082 lbs |
INA SCE2012 needle bearings, inch sizes needle roller bearing, to ABMA 18.2 - 1982, inch sizes.
INA SCE2012 bearing cross reference
INA SCE208 bearing
31.75mm x 38.1mm x 12.7mm
INA SCE2010 bearing
31.75mm x 38.1mm x 15.875mm
INA SCE2016 bearing
31.75mm x 38.1mm x 25.4mm
INA SCE2020 bearing
31.75mm x 38.1mm x 31.75mm

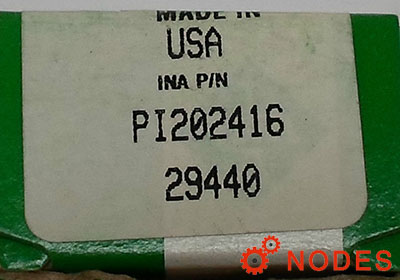

INA PI202416 bearing
31.75mm x 38.1mm x 25.4mm
INA PI202420 bearing
31.75mm x 38.1mm x 31.75mm
INA NCS2012 bearing
31.75mm x 44.45mm x 19.05mm
INA NCS2016 bearing
31.75mm x 44.45mm x 25.4mm
INA NCS2020 bearing
31.75mm x 44.45mm x 31.75mm
INA C202616 bearing
31.75mm x 41.275mm x 25.4mm
INA C202812 bearing
31.75mm x 44.45mm x 19.05mm
