INA NKIA5901-XL Bearing

INA NKIA5901-XL combined needle bearings | 12x24x16mm

Also known as : NKIA5901-XL

  • Inside Diameter: 12 mm
  • Outside Diameter: 24 mm
  • Width: 16 mm
  • Basic dynamic load rating: 2.7 kN
  • Basic static load rating: 3.45 kN

Inquire Now


INA NKIA5901-XL Bearing

INA NKIA5901-XL Bearing details

Number NKIA5901-XL
Type Needle roller bearings
Needle roller/angular contact ball bearings NKIA

d 12 mm
D 24 mm
B 16 mm
F 16 mm
rmin 0,3 mm
m 40 g  Mass
Cr 8600 N  Basic dynamic load rating, radial
C0r 8300 N  Basic static load rating, radial
Ca 2700 N  Basic dynamic load rating, axial
C0a 3450 N  Basic static load rating, axial
Cur 1630 N  Fatigue limit load, radial
Cua 152 N  Fatigue limit load, axial
nG 23600 1/min  Limiting speed
nB 21000 1/min  Reference speed

As INA bearing distributor, Nodes bearings have INA NKIA5901-XL Needle roller/angular contact ball bearings in stock. NKIA5901-XL is single direction axial component, to DIN 5 429-2.

INA NKIA5901-XL bearing cross reference

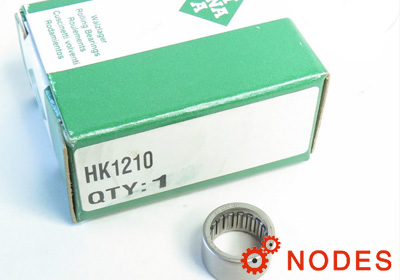

INA HK1210 bearing
12mm x 16mm x 10mm

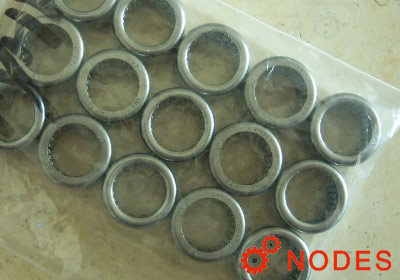

INA HK1212 bearing
12mm x 18mm x 12mm
INA HK1216 bearing
12mm x 18mm x 16mm
INA HK1214-2RS bearing
12mm x 16mm x 14mm

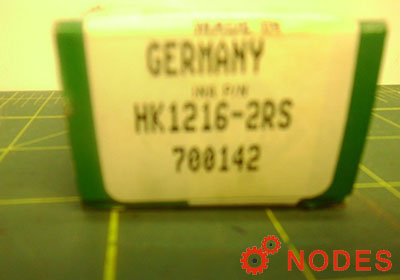

INA HK1216-2RS bearing
12mm x 18mm x 16mm
INA HK1214-RS bearing
12mm x 18mm x 14mm
INA HN1210 bearing
12mm x 16mm x 10mm
INA HN1212 bearing
12mm x 18mm x 12mm
INA IR12X15X12-XL bearing
12mm x 15mm x 12mm
INA IR12X15X12,5-XL bearing
12mm x 15mm x 12.5mm
INA IR12X15X16-XL bearing
12mm x 15mm x 16mm
INA IR12X15X16,5-XL bearing
12mm x 15mm x 16.5mm
