INA NKX70-XL Bearing

INA NKX70-XL combined needle bearings | 70x85x40mm

Also known as : NKX70-XL

  • Inside Diameter: 70 mm
  • Outside Diameter: 85 mm
  • Width: 40 mm
  • Basic dynamic load rating: 43 kN
  • Basic static load rating: 127 kN

Inquire Now


INA NKX70-XL Bearing

INA NKX70-XL Bearing details

Number NKX70-XL
Type Needle roller bearings
Needle roller/axial ball bearings

Fw 70 mm
D 85 mm
C 40 mm  Tolerance: 0/-0,25
C1 18 mm  Tolerance: 0/-0,2
C2 11 mm
D1 max 95,2 mm
da 90,5 mm
dw 70 mm  Tolerance: E8
ra max 1 mm
rmin 1 mm
m 500 g  Mass
Cr 50000 N  Basic dynamic load rating, radial
C0r 92000 N  Basic static load rating, radial
Ca 43000 N  Basic dynamic load rating, axial
C0a 127000 N  Basic static load rating, axial
Cur 15700 N  Fatigue limit load, radial
Cua 6100 N  Fatigue limit load, axial
nG 2400 1/min  Limiting speed
  IR60X70X25-XL  Suitable inner ring

As INA bearing distributor, Nodes bearings have INA NKX70-XL Needle roller/axial ball bearings in stock. NKX70-XL is axial component, single direction, to DIN 5429, without end cap, for oil lubrication.

INA NKX70-XL bearing cross reference

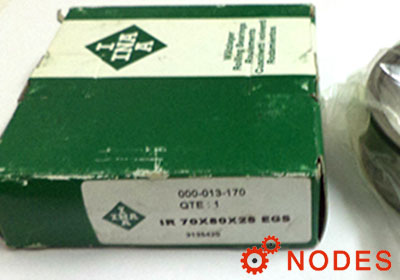

INA IR70X80X25-XL bearing
70mm x 80mm x 25mm
INA IR70X80X30-XL bearing
70mm x 80mm x 30mm

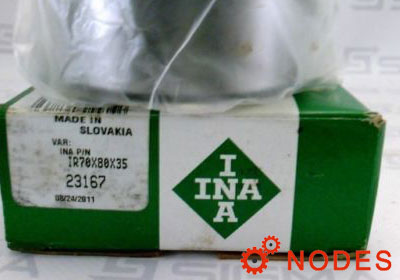

INA IR70X80X35-XL bearing
70mm x 80mm x 35mm
INA IR70X80X54-XL bearing
70mm x 80mm x 54mm
INA NA4914-XL bearing
70mm x 100mm x 30mm
INA NA6914-ZW-XL bearing
70mm x 100mm x 54mm
INA NAO70X100X30-XL bearing
70mm x 100mm x 30mm
INA NK70/25-XL bearing
70mm x 85mm x 25mm

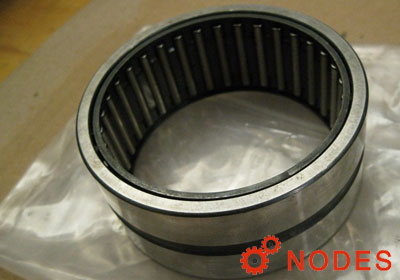

INA NK70/35-XL bearing
70mm x 85mm x 35mm
INA NKI70/25-XL bearing
70mm x 95mm x 25mm
INA NKI70/35-XL bearing
70mm x 95mm x 35mm
INA RNAO70X90X30-XL bearing
70mm x 90mm x 30mm
