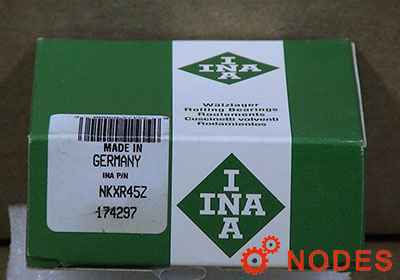

INA NKXR45-Z-XL combined needle bearings | 45x58x32mm
Also known as : NKXR45-Z-XL
- Inside Diameter: 45 mm
- Outside Diameter: 58 mm
- Width: 32 mm
- Basic dynamic load rating: 59 kN
- Basic static load rating: 163 kN
INA NKXR45-Z-XL Bearing

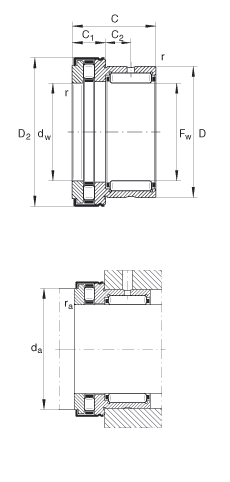

INA NKXR45-Z-XL Bearing details
Number | NKXR45-Z-XL | |
---|---|---|
Type |
Needle roller bearings Needle roller/axial cylindrical roller bearings |
|
Fw | 45 mm | |
D | 58 mm | |
C | 32 mm | Tolerance: 0/-0,25 |
C1 | 14 mm | Tolerance: 0/-0,2 |
C2 | 9 mm | |
D2 max | 66,5 mm | |
da | 60,6 mm | |
dw | 45 mm | Tolerance: E8 |
ra max | 0,6 mm | |
rmin | 0,6 mm | |
m | 260 g | Mass |
Cr | 31000 N | Basic dynamic load rating, radial |
C0r | 53000 N | Basic static load rating, radial |
Ca | 59000 N | Basic dynamic load rating, axial |
C0a | 163000 N | Basic static load rating, axial |
Cur | 9300 N | Fatigue limit load, radial |
Cua | 16000 N | Fatigue limit load, axial |
nG | 5000 1/min | Limiting speed |
nB | 1900 1/min | Reference speed |
IR40X45X20-XL | Suitable inner ring |
As INA bearing distributor, Nodes bearings have INA NKXR45-Z-XL Needle roller/axial cylindrical roller bearings in stock. NKXR45-Z-XL is axial component, single direction, to DIN 5429, with end cap, for grease lubrication.
