INA NX35-XL Bearing

INA NX35-XL combined needle bearings | 35x47x30mm

Also known as : NX35-XL

  • Inside Diameter: 35 mm
  • Outside Diameter: 47 mm
  • Width: 30 mm
  • Basic dynamic load rating: 12.4 kN
  • Basic static load rating: 32.5 kN

Inquire Now

INA NX35-XL Bearing

INA NX35-XL Bearing details

Number NX35-XL
Type Needle roller bearings
Needle roller/axial ball bearings

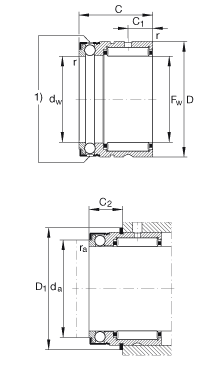

Fw 35 mm
D 47 mm
C 30 mm  Tolerance: 0/-0,25
1)   Holes for lubricating oil
2)   Mounting dimensions
Snap ring in outer ring
C1 10 mm
C2 14,2 mm
D1 50,1 mm
da 40,5 mm
dw 35 mm  Tolerance: E8
ra max 0,3 mm
rmin 0,3 mm
m 160 g  Mass
Cr 27500 N  Basic dynamic load rating, radial
C0r 41500 N  Basic static load rating, radial
Ca 12400 N  Basic dynamic load rating, axial
C0a 32500 N  Basic static load rating, axial
Cur 7300 N  Fatigue limit load, radial
Cua 1440 N  Fatigue limit load, axial
nG 3700 1/min  Limiting speed
  IR30X35X20-XL  Suitable inner ring
  WR47,
SW47
Suitable snap rings WR and SW

As INA bearing distributor, Nodes bearings have INA NX35-XL Needle roller/axial ball bearings in stock. NX35-XL is single direction axial component, for oil lubrication.
