INA GE17-FW Bearing

INA GE17-FW plain bearings | 17x35x20mm

Also known as : GE17-FW

  • Inside Diameter: 17 mm
  • Outside Diameter: 35 mm
  • Width: 20 mm
  • Basic dynamic load rating: 31.3 kN
  • Basic static load rating: 78.3 kN

Inquire Now

INA GE17-FW Bearing

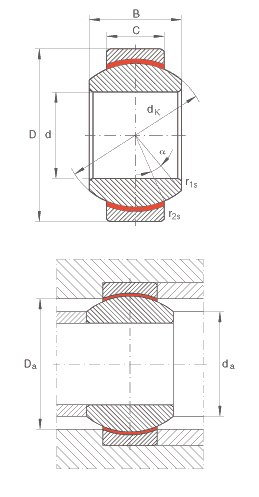

INA GE17-FW Bearing details

Number GE17-FW
Type Spherical plain bearings
d 17 mm  Tolerance: 0/-0,008
D 35 mm  Tolerance: 0/-0,011
B 20 mm  Tolerance: 0/-0,12
C 12 mm  Tolerance: 0/-0,24
Da min 27,5 mm
da max 21 mm
dK 29 mm
r1s min 0,3 mm  Chamfer dimension
r2s min 0,3 mm  Chamfer dimension
α 19 °
m 0,082 kg  Mass
Cr 31300 N  Basic dynamic load rating, radial
C0r 78300 N  Basic static load rating, radial

As INA bearing distributor, Nodes bearings have INA GE17-FW radial spherical plain bearings in stock. GE17-FW, maintenance-free, to DIN ISO 12 240-1.
