INA GE50-ZO Bearing

INA GE50-ZO plain bearings | 50.8x80.963x44.45mm

Also known as : GE50-ZO

  • Inside Diameter: 50.8 mm
  • Outside Diameter: 80.963 mm
  • Width: 44.45 mm
  • Basic dynamic load rating: 223 kN
  • Basic static load rating: 668 kN

Inquire Now

INA GE50-ZO Bearing

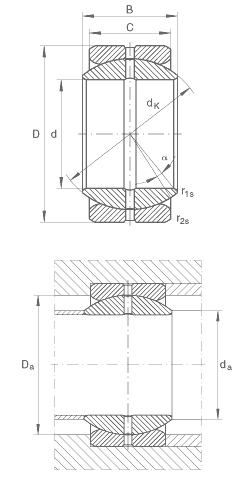

INA GE50-ZO Bearing details

Number GE50-ZO
Type Spherical plain bearings
d 50,8 mm  Tolerance: 0/-0,015
D 80,963 mm  Tolerance: 0/-0,015
B 44,45 mm  Tolerance: 0/-0,15
C 38,1 mm  Tolerance: 0/-0,4
Da min 65 mm
da max 57,9 mm
dK 73 mm
r1s min 0,6 mm  Chamfer dimension
r2s min 1 mm  Chamfer dimension
α 6 °
m 0,92 kg  Mass
Cr 223000 N  Basic dynamic load rating, radial
C0r 668000 N  Basic static load rating, radial

As INA bearing distributor, Nodes bearings have INA GE50-ZO radial spherical plain bearings in stock. GE50-ZO, requiring maintenance, to DIN ISO 12 240-1, lip seals on both sides.

INA GE50-ZO bearing cross reference

IKO GE50EC-2RS bearing
50mm x 75mm x 35mm
IKO GE50ES bearing
50mm x 75mm x 35mm
IKO GE50ES-2RS bearing
50mm x 75mm x 35mm
IKO GE50GS bearing
50mm x 90mm x 56mm
IKO GE50GS-2RS bearing
50mm x 90mm x 56mm
SKF GE50ES bearing
50mm x 75mm x 35mm
SKF GEH50TXE-2LS bearing
50mm x 90mm x 56mm
INA GE50-DO bearing
50mm x 75mm x 35mm
INA GE50-DO-2RS bearing
50mm x 75mm x 35mm
INA GE50-FO-2RS bearing
50mm x 90mm x 56mm
INA GE50-HO-2RS bearing
50mm x 75mm x 43mm
INA GE50-UK-2RS bearing
50mm x 75mm x 35mm
