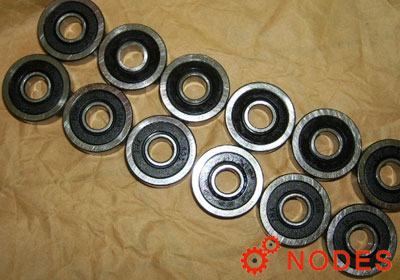

INA LR50/8-2RSR track rollers
Also known as : LR50/8-2RSR
- Inside Diameter: 8 mm
- Outside Diameter: 24 mm
- Width: 11 mm
- Basic dynamic load rating: 4.3 kN
- Basic static load rating: 2.39 kN
INA LR50/8-2RSR Bearing
INA LR50/8-2RSR Bearing details
| model | LR50/8-2RSR |
|---|---|
| d | 8 mm |
| D | 24 mm |
| C | 11 mm |
| d2 | 10.5 mm |
| R | 500 mm, Crowning radius |
| rmin | 0.3 mm |
| Cr w | 4300 N, Effective dynamic load rating as track roller (radial) |
| C0r w | 2390 N, Effective static load rating as track roller (radial) |
| Cur w | 119 N, Fatigue limit load |
| Fr per | 2390 N |
| speed | 10000 1/min, (with continuous operation and grease lubrication) |
| mass | 0.03 kg |
INA LR50/8-2RSR track rollers, Track rollers, double row, sealed on both sides.
INA LR50/8-2RSR bearing cross reference
INA LFR50/8-6-2Z bearing
8mm x 24mm x 11mm
