INA ball bearing track rollers are self-retaining, single or double row ball bearings with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions.
The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track and edge stresses must be avoided.
INA LR5200-2Z-TVH-XL track rollers
INA LR5200-2Z-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 10mm x 32mm x 14mm, Crw: 7200N, C0rw: 4800N.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 32 mm
- Width: 14 mm
- Basic dynamic load rating: 7.2 kN
- Basic static load rating: 7.2 kN

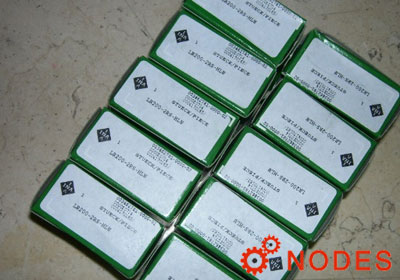

INA LR200-2RS track rollers
INA LR200-2RS track rollers, Brand: INA, sealed on both sides, Dimensions: 10mm x 32mm x 9mm, Crw: 5300N, C0rw: 2400N.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 32 mm
- Width: 9 mm
- Basic dynamic load rating: 5.3 kN
- Basic static load rating: 5.3 kN

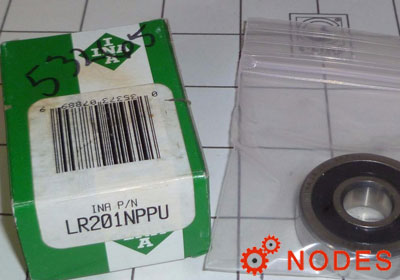

INA LR201-2RSR track rollers
INA LR201-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 12mm x 35mm x 10mm, Crw: 6000N, C0rw: 2750N.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 35 mm
- Width: 10 mm
- Basic dynamic load rating: 6 kN
- Basic static load rating: 6 kN

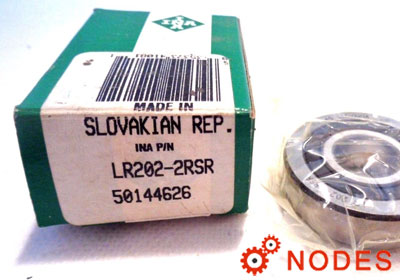

INA LR202-2RSR track rollers
INA LR202-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 15mm x 40mm x 11mm, Crw: 7000N, C0rw: 3350N.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 40 mm
- Width: 11 mm
- Basic dynamic load rating: 7 kN
- Basic static load rating: 7 kN

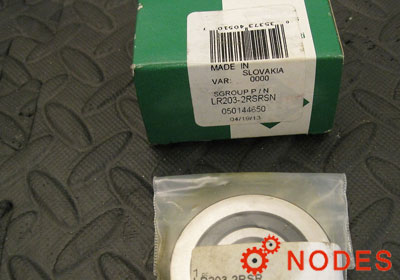

INA LR203-2RSR track rollers
INA LR203-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 17mm x 47mm x 12mm, Crw: 8900N, C0rw: 4450N.
- Brand: INA
- Inside Diameter: 17 mm
- Outside Diameter: 47 mm
- Width: 12 mm
- Basic dynamic load rating: 8.9 kN
- Basic static load rating: 8.9 kN

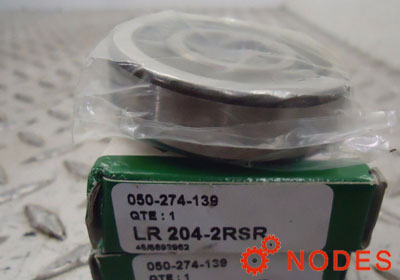

INA LR204-2RSR track rollers
INA LR204-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 20mm x 52mm x 14mm, Crw: 11300N, C0rw: 5700N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 52 mm
- Width: 14 mm
- Basic dynamic load rating: 11.3 kN
- Basic static load rating: 11.3 kN

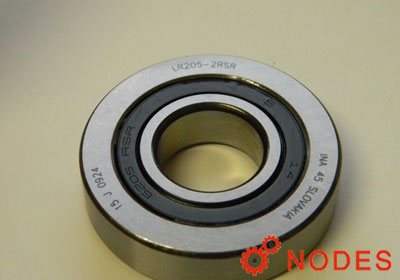

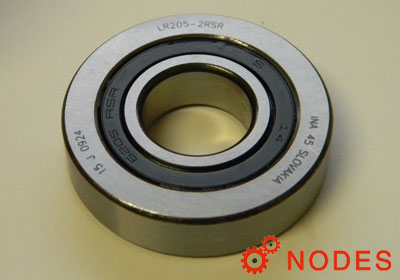

INA LR205-2RSR track rollers
INA LR205-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 25mm x 62mm x 15mm, Crw: 13300N, C0rw: 7100N.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 62 mm
- Width: 15 mm
- Basic dynamic load rating: 13.3 kN
- Basic static load rating: 13.3 kN
INA LR5201-2HRS-TVH-XL track rollers
INA LR5201-2HRS-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 12mm x 35mm x 15.9mm, Crw: 8800N, C0rw: 6000N.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 35 mm
- Width: 15.9 mm
- Basic dynamic load rating: 8.8 kN
- Basic static load rating: 8.8 kN

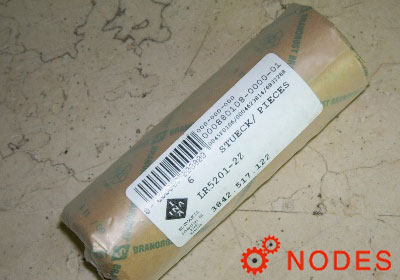

INA LR5201-2Z-TVH-XL track rollers
INA LR5201-2Z-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 12mm x 35mm x 15.9mm, Crw: 8800N, C0rw: 6000N.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 35 mm
- Width: 15.9 mm
- Basic dynamic load rating: 8.8 kN
- Basic static load rating: 8.8 kN
INA LR5202-2HRS-TVH-XL track rollers
INA LR5202-2HRS-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 15mm x 40mm x 15.9mm, Crw: 10800N, C0rw: 7500N.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 40 mm
- Width: 15.9 mm
- Basic dynamic load rating: 10.8 kN
- Basic static load rating: 10.8 kN

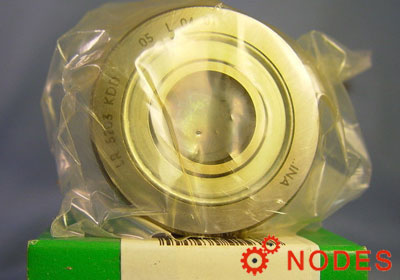

INA LR5203-2Z-TVH-XL track rollers
INA LR5203-2Z-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 17mm x 47mm x 17.5mm, Crw: 13700N, C0rw: 9800N.
- Brand: INA
- Inside Diameter: 17 mm
- Outside Diameter: 47 mm
- Width: 17.5 mm
- Basic dynamic load rating: 13.7 kN
- Basic static load rating: 13.7 kN

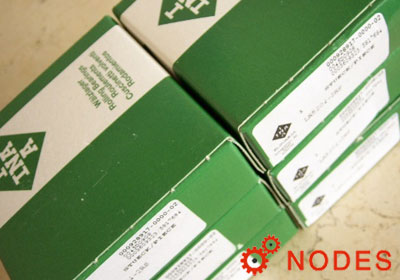

INA LR5204-2HRS-TVH-XL track rollers
INA LR5204-2HRS-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 20mm x 52mm x 20.6mm, Crw: 16900N, C0rw: 12300N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 52 mm
- Width: 20.6 mm
- Basic dynamic load rating: 16.9 kN
- Basic static load rating: 16.9 kN

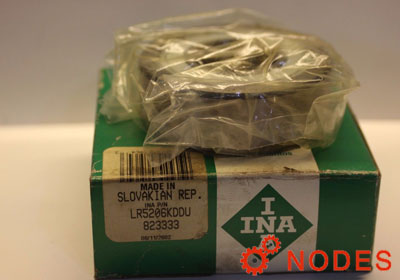

INA LR5206-2Z-TVH-XL track rollers
INA LR5206-2Z-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 30mm x 72mm x 23.8mm, Crw: 26500N, C0rw: 21400N.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 72 mm
- Width: 23.8 mm
- Basic dynamic load rating: 26.5 kN
- Basic static load rating: 26.5 kN

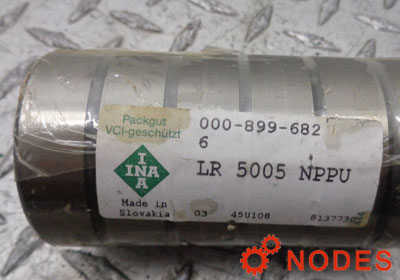

INA LR5005-2RS track rollers
INA LR5005-2RS track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 25mm x 52mm x 16mm, Crw: 11800N, C0rw: 8200N.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 16 mm
- Basic dynamic load rating: 11.8 kN
- Basic static load rating: 11.8 kN

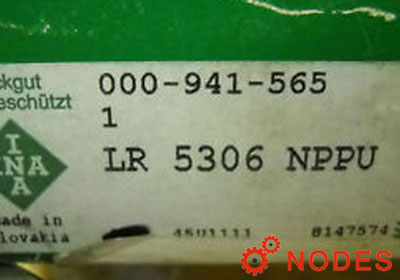

INA LR5306-2HRS-TVH-XL track rollers
INA LR5306-2HRS-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 30mm x 80mm x 30.2mm, Crw: 36000N, C0rw: 28500N.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 80 mm
- Width: 30.2 mm
- Basic dynamic load rating: 36 kN
- Basic static load rating: 36 kN

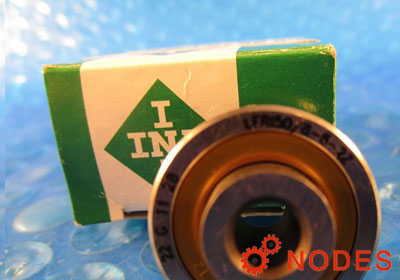

INA LFR50/5-6-2Z track rollers
INA LFR50/5-6-2Z bearing, Brand: INA, locating bearing track rollers, double row, gap seals on both sides, Dimensions: 5mm x 17mm x 8mm, Crw: 1630N, C0rw: 900N.
- Brand: INA
- Inside Diameter: 5 mm
- Outside Diameter: 17 mm
- Width: 8 mm
- Basic dynamic load rating: 1.62 kN
- Basic static load rating: 1.62 kN

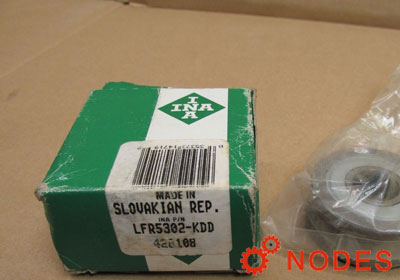

INA LFR5302-10-2Z track rollers
INA LFR5302-10-2Z bearing, Brand: INA, locating bearing track rollers, double row, gap seals on both sides, Dimensions: 15mm x 47mm x 19mm, Crw: 14500N, C0rw: 9100N.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 47 mm
- Width: 19 mm
- Basic dynamic load rating: 14.5 kN
- Basic static load rating: 14.5 kN

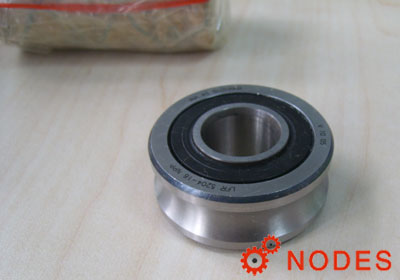

INA LFR5204-16-2Z track rollers
INA LFR5204-16-2Z bearing, Brand: INA, locating bearing track rollers, double row, gap seals on both sides, Dimensions: 20mm x 52mm x 22.6mm, Crw: 15300N, C0rw: 10100N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 52 mm
- Width: 22.6 mm
- Basic dynamic load rating: 15.3 kN
- Basic static load rating: 15.3 kN

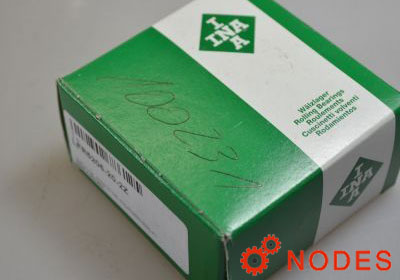

INA LFR5206-20-2Z track rollers
INA LFR5206-20-2Z bearing, Brand: INA, locating bearing track rollers, double row, gap seals on both sides, Dimensions: 25mm x 72mm x 25.8mm, Crw: 23100N, C0rw: 16400N.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 72 mm
- Width: 25.8 mm
- Basic dynamic load rating: 23.1 kN
- Basic static load rating: 23.1 kN

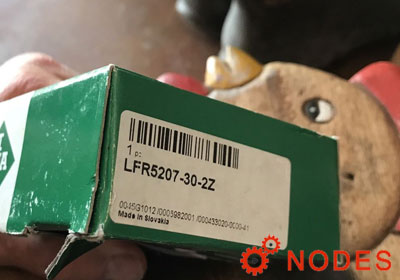

INA LFR5207-30-2Z track rollers
INA LFR5207-30-2Z bearing, Brand: INA, locating bearing track rollers, double row, gap seals on both sides, Dimensions: 30mm x 80mm x 29mm, Crw: 28500N, C0rw: 20800N.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 80 mm
- Width: 29 mm
- Basic dynamic load rating: 28.5 kN
- Basic static load rating: 28.5 kN
INA LR206-2RS track rollers
INA LR206-2RS track rollers, Brand: INA, sealed on both sides, Dimensions: 30mm x 72mm x 16mm, Crw: 17600N, C0rw: 9700N.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 72 mm
- Width: 16 mm
- Basic dynamic load rating: 17.6 kN
- Basic static load rating: 17.6 kN
INA LR207-2RS track rollers
INA LR207-2RS track rollers, Brand: INA, sealed on both sides, Dimensions: 35mm x 80mm x 17mm, Crw: 21900N, C0rw: 12100N.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 80 mm
- Width: 17 mm
- Basic dynamic load rating: 21.9 kN
- Basic static load rating: 21.9 kN
INA LR209-2RS track rollers
INA LR209-2RS track rollers, Brand: INA, sealed on both sides, Dimensions: 45mm x 90mm x 19mm, Crw: 23700N, C0rw: 13700N.
- Brand: INA
- Inside Diameter: 45 mm
- Outside Diameter: 90 mm
- Width: 19 mm
- Basic dynamic load rating: 23.7 kN
- Basic static load rating: 23.7 kN
INA LR200-X-2RS track rollers
INA LR200-X-2RS track rollers, Brand: INA, sealed on both sides, Dimensions: 10mm x 32mm x 9mm, Crw: 5300N, C0rw: 2400N.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 32 mm
- Width: 9 mm
- Basic dynamic load rating: 5.3 kN
- Basic static load rating: 5.3 kN
INA LR201-X-2RSR track rollers
INA LR201-X-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 12mm x 35mm x 10mm, Crw: 6000N, C0rw: 2750N.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 35 mm
- Width: 10 mm
- Basic dynamic load rating: 6 kN
- Basic static load rating: 6 kN
INA LR202-X-2RSR track rollers
INA LR202-X-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 15mm x 40mm x 11mm, Crw: 7000N, C0rw: 3350N.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 40 mm
- Width: 11 mm
- Basic dynamic load rating: 7 kN
- Basic static load rating: 7 kN
INA LR203-X-2RSR track rollers
INA LR203-X-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 17mm x 47mm x 12mm, Crw: 8900N, C0rw: 4450N.
- Brand: INA
- Inside Diameter: 17 mm
- Outside Diameter: 47 mm
- Width: 12 mm
- Basic dynamic load rating: 8.9 kN
- Basic static load rating: 8.9 kN
INA LR204-X-2RSR track rollers
INA LR204-X-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 20mm x 52mm x 14mm, Crw: 11300N, C0rw: 5700N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 52 mm
- Width: 14 mm
- Basic dynamic load rating: 11.3 kN
- Basic static load rating: 11.3 kN
INA LR205-X-2RSR track rollers
INA LR205-X-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 25mm x 62mm x 15mm, Crw: 13300N, C0rw: 7100N.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 62 mm
- Width: 15 mm
- Basic dynamic load rating: 13.3 kN
- Basic static load rating: 13.3 kN
INA LR206-X-2RS track rollers
INA LR206-X-2RS track rollers, Brand: INA, sealed on both sides, Dimensions: 30mm x 72mm x 16mm, Crw: 17600N, C0rw: 9700N.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 72 mm
- Width: 16 mm
- Basic dynamic load rating: 17.6 kN
- Basic static load rating: 17.6 kN
INA LR207-X-2RS track rollers
INA LR207-X-2RS track rollers, Brand: INA, sealed on both sides, Dimensions: 35mm x 80mm x 17mm, Crw: 21900N, C0rw: 12100N.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 80 mm
- Width: 17 mm
- Basic dynamic load rating: 21.9 kN
- Basic static load rating: 21.9 kN
INA LR209-X-2RS track rollers
INA LR209-X-2RS track rollers, Brand: INA, sealed on both sides, Dimensions: 45mm x 90mm x 19mm, Crw: 23700N, C0rw: 13700N.
- Brand: INA
- Inside Diameter: 45 mm
- Outside Diameter: 90 mm
- Width: 19 mm
- Basic dynamic load rating: 23.7 kN
- Basic static load rating: 23.7 kN
INA LR5200-2HRS-TVH-XL track rollers
INA LR5200-2HRS-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 10mm x 32mm x 14mm, Crw: 7200N, C0rw: 4800N.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 32 mm
- Width: 14 mm
- Basic dynamic load rating: 7.2 kN
- Basic static load rating: 7.2 kN

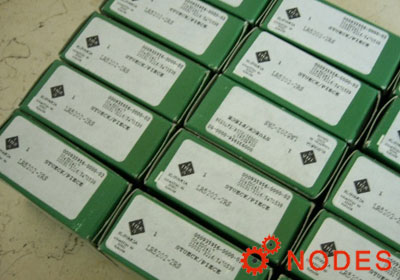

INA LR5202-2Z-TVH-XL track rollers
INA LR5202-2Z-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 15mm x 40mm x 15.9mm, Crw: 10800N, C0rw: 7500N.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 40 mm
- Width: 15.9 mm
- Basic dynamic load rating: 10.8 kN
- Basic static load rating: 10.8 kN
INA LR5203-2HRS-TVH-XL track rollers
INA LR5203-2HRS-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 17mm x 47mm x 17.5mm, Crw: 13700N, C0rw: 9800N.
- Brand: INA
- Inside Diameter: 17 mm
- Outside Diameter: 47 mm
- Width: 17.5 mm
- Basic dynamic load rating: 13.7 kN
- Basic static load rating: 13.7 kN
INA LR5204-2Z-TVH-XL track rollers
INA LR5204-2Z-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 20mm x 52mm x 20.6mm, Crw: 16900N, C0rw: 12300N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 52 mm
- Width: 20.6 mm
- Basic dynamic load rating: 16.9 kN
- Basic static load rating: 16.9 kN
INA LR5205-2HRS-TVH-XL track rollers
INA LR5205-2HRS-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 25mm x 62mm x 20.6mm, Crw: 19700N, C0rw: 15400N.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 62 mm
- Width: 20.6 mm
- Basic dynamic load rating: 19.7 kN
- Basic static load rating: 19.7 kN
INA LR5205-2Z-TVH-XL track rollers
INA LR5205-2Z-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 25mm x 62mm x 20.6mm, Crw: 19700N, C0rw: 15400N.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 62 mm
- Width: 20.6 mm
- Basic dynamic load rating: 19.7 kN
- Basic static load rating: 19.7 kN
