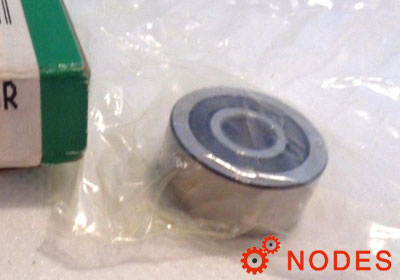

INA LR606-2RSR track rollers
Also known as : LR606-2RSR
- Inside Diameter: 6 mm
- Outside Diameter: 19 mm
- Width: 6 mm
- Basic dynamic load rating: 1.94 kN
- Basic static load rating: 0.79 kN
INA LR606-2RSR Bearing
INA LR606-2RSR Bearing details
| model | LR606-2RSR |
|---|---|
| d | 6 mm |
| D | 19 mm |
| C | 6 mm |
| d2 | 8.7 mm |
| R | 500 mm, Crowning radius |
| rmin | 0.3 mm |
| Cr w | 1940 N, Effective dynamic load rating as track roller (radial) |
| C0r w | 790 N, Effective static load rating as track roller (radial) |
| Cur w | 39,5 N, Fatigue limit load |
| speed | 22000 1/min, (with continuous operation and grease lubrication) |
| mass | 0.01 kg |
INA LR606-2RSR track rollers, Track rollers, sealed on both sides.
INA LR606-2RSR bearing cross reference
