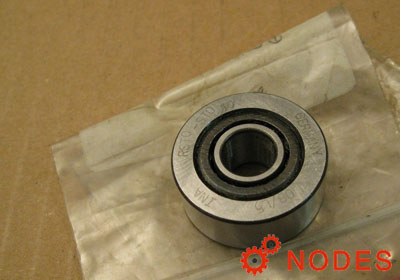

INA NATR10-PP Bearing

INA NATR10-PP Yoke type track rollers

Also known as : NATR10-PP, NART10UUR

• Inside Diameter: 10 mm
• Outside Diameter: 30 mm
• Width: 15 mm
• Basic dynamic load rating: 6.8 kN
• Basic static load rating: 8.6 kN

Inquire Now

INA NATR10-PP Bearing

d	10 mm
D	30 mm
B	15 mm
C	14 mm
d2	23 mm
rmin	0,6 mm
m	64 g	Mass
Cr w	6800 N	Effective dynamic load rating as track roller (radial)
C0r w	8600 N	Effective static load rating as track roller (radial)
Cur w	1220 N	Fatigue limit load
nD G	5500 1/min	Speed (with continuous operation and grease lubrication)
		Bearing with plastic axial plain washers and optimised INA profile. Permissible operating temperature: -30°C to + 100°C (continuous operation).

As INA bearing distributor, Nodes bearings have INA NATR10-PP Yoke type track rollers in stock, with axial guidance, axial plain washers on both sides.
