INA NATR35-PP Bearing

INA NATR35-PP Yoke type track rollers

Also known as : NATR35-PP, NART35UUR

  • Inside Diameter: 35 mm
  • Outside Diameter: 72 mm
  • Width: 29 mm
  • Basic dynamic load rating: 24.8 kN
  • Basic static load rating: 44.5 kN

Inquire Now


INA NATR35-PP Bearing

INA NATR35-PP Bearing details

d 35 mm
D 72 mm
B 29 mm
C 28 mm
d2 58 mm
rmin 1,1 mm
m 547 g  Mass
Cr w 24800 N  Effective dynamic load rating as track roller (radial)
C0r w 44500 N  Effective static load rating as track roller (radial)
Cur w 5900 N  Fatigue limit load
nD G 1000 1/min  Speed (with continuous operation and grease lubrication)
    Bearing with plastic axial plain washers and optimised INA profile.
Permissible operating temperature: -30°C to + 100°C (continuous operation).

As INA bearing distributor, Nodes bearings have INA NATR35-PP Yoke type track rollers in stock, with axial guidance, axial plain washers on both sides.

INA NATR35-PP bearing cross reference

INA NA2207-2RSR bearing
35mm x 72mm x 23mm
INA NATV35-PP bearing
35mm x 72mm x 29mm
INA PWTR35-2RS-XL bearing
35mm x 72mm x 29mm
INA PWTR3580-2RS-XL bearing
35mm x 80mm x 29mm

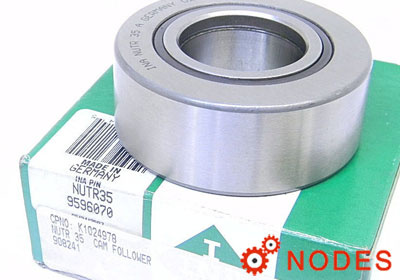

INA NUTR35 bearing
35mm x 72mm x 29mm

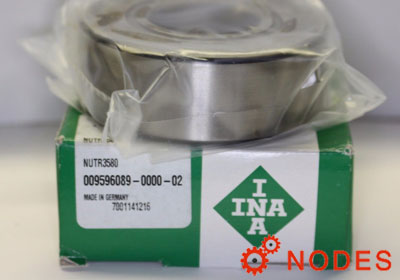

INA NUTR3580 bearing
35mm x 80mm x 29mm
INA RNA2206-2RSR bearing
35mm x 62mm x 19.8mm

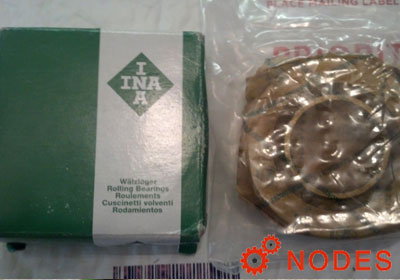

INA STO35 bearing
35mm x 72mm x 20mm
