INA NATR40-PP Bearing

INA NATR40-PP Yoke type track rollers

Also known as : NATR40-PP, NART40UUR

  • Inside Diameter: 40 mm
  • Outside Diameter: 80 mm
  • Width: 32 mm
  • Basic dynamic load rating: 32 kN
  • Basic static load rating: 58 kN

Inquire Now

INA NATR40-PP Bearing

INA NATR40-PP Bearing details

d 40 mm
D 80 mm
B 32 mm
C 30 mm
d2 66 mm
rmin 1,1 mm
m 795 g  Mass
Cr w 32000 N  Effective dynamic load rating as track roller (radial)
C0r w 58000 N  Effective static load rating as track roller (radial)
Cur w 8300 N  Fatigue limit load
nD G 850 1/min  Speed (with continuous operation and grease lubrication)
    Bearing with plastic axial plain washers and optimised INA profile.
Permissible operating temperature: -30°C to + 100°C (continuous operation).

As INA bearing distributor, Nodes bearings have INA NATR40-PP Yoke type track rollers in stock, with axial guidance, axial plain washers on both sides.

INA NATR40-PP bearing cross reference

INA NA2208-2RSR bearing
40mm x 80mm x 23mm
INA NATV40-PP bearing
40mm x 80mm x 32mm
INA PWTR40-2RS-XL bearing
40mm x 80mm x 32mm
INA PWTR4090-2RS-XL bearing
40mm x 90mm x 32mm

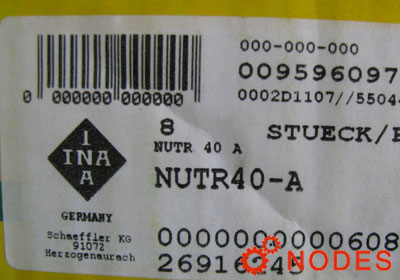

INA NUTR40 bearing
40mm x 80mm x 32mm
INA NUTR4090 bearing
40mm x 90mm x 32mm
INA STO40 bearing
40mm x 80mm x 20mm
