INA NATV50-PP Bearing

INA NATV50-PP Yoke type track rollers

Also known as : NATV50-PP, NART50VUUR

  • Inside Diameter: 50 mm
  • Outside Diameter: 90 mm
  • Width: 32 mm
  • Basic dynamic load rating: 39 kN
  • Basic static load rating: 92 kN

Inquire Now

INA NATV50-PP Bearing

INA NATV50-PP Bearing details

d 50 mm
D 90 mm
B 32 mm
C 30 mm
d2 76 mm
rmin 1,1 mm
m 969 g  Mass
Cr w 39000 N  Effective dynamic load rating as track roller (radial)
C0r w 92000 N  Effective static load rating as track roller (radial)
Cur w 13600 N  Fatigue limit load
nD G 550 1/min  Speed (with continuous operation and grease lubrication)
    Bearing with plastic axial plain washers and optimised INA profile.
Permissible operating temperature: -30°C to + 100°C (continuous operation).

As INA bearing distributor, Nodes bearings have INA NATV50-PP Yoke type track rollers in stock, full complement needle roller set, with axial guidance, axial plain washers on both sides.

INA NATV50-PP bearing cross reference

INA NA2210-2RSR bearing
50mm x 90mm x 23mm
INA NATR50-PP bearing
50mm x 90mm x 32mm
INA PWTR50-2RS-XL bearing
50mm x 90mm x 32mm
INA PWTR50110-2RS-XL bearing
50mm x 110mm x 32mm
INA NUTR50 bearing
50mm x 90mm x 32mm

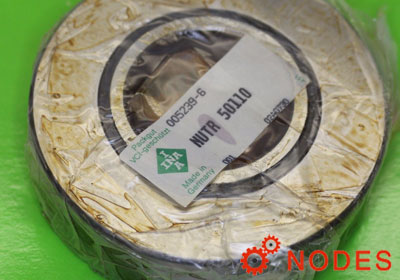

INA NUTR50110 bearing
50mm x 110mm x 32mm
INA RSTO40 bearing
50mm x 80mm x 19.8mm
INA STO50 bearing
50mm x 90mm x 20mm
