NTN 7306B bearings | 30x72x19mm
Also known as : 7306B
- Inside Diameter: 30 mm
- Outside Diameter: 72 mm
- Width: 19 mm
- Basic dynamic load rating: 31 kN
- Basic static load rating: 20.5 kN
NTN 7306B Bearing
NTN 7306B Bearing details
| Part Number | 7306B |
|---|---|
| Brand | NTN |
| Mass | 0.352 kg |
| Boundary dimensions (mm) | |
| Inner dia. (d) | 30 |
| Outer dia. (D) | 72 |
| Width (B) | 19 |
| Chamfer (rs_min) | 1.1 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 31 |
| Static (Cor) | 20.5 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 3150 |
| Static (Cor) | 2090 |
| Limiting speed (min-1) | |
| Grease | 9600 |
| Oil | 13000 |
| Abutment and fillet dimensions (mm) | |
| da min | 37 |
| Da max | 65 |
| ras max | 1 |
Nodes have NTN 7306B bearings in stock. 7306B, single row angular contact ball bearing.
NTN 7306B bearing cross reference
FAG 7306-B-XL-JP bearing
30mm x 72mm x 19mm
FAG 7306-B-XL-MP bearing
30mm x 72mm x 19mm
FAG 7306-B-XL-TVP bearing
30mm x 72mm x 19mm

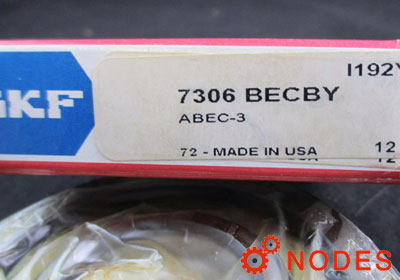

SKF 7306 BECBY bearing
30mm x 72mm x 19mm
SKF 7306 BEGBY bearing
30mm x 72mm x 19mm
NSK 7306B bearing
30mm x 72mm x 19mm
NSK 7306A bearing
30mm x 72mm x 19mm
NSK 7306ADB bearing
30mm x 72mm x 19mm
NSK 7306BDB bearing
30mm x 72mm x 19mm
NSK 7306ADF bearing
30mm x 72mm x 19mm
NSK 7306BDF bearing
30mm x 72mm x 19mm
