In ball bearings, NTN angular contact ball bearings have a given angle in the radial direction (the contact angle). And this angle is generally designed with three kinds of contact angle (15, 30, 40 degree).
NTN angular contact ball bearings can bear axial loads, but because of the contact angle cannot be used singly and must be used in pairs or combinations.
NTN 5211S double row angular contact ball bearings
NTN 5211S double row angular contact ball bearings, Dimensions: 55 x 100 x 33.3 mm
- Brand: NTN
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 33.3 mm
- Basic dynamic load rating: 56 kN
- Basic static load rating: 56 kN
NTN 5209SC3 double row angular contact ball bearings
NTN 5204SCLLD double row angular contact ball bearings, open type, pressed cage, dimensions: 45 x 85 x 30.2 mm
- Brand: NTN
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 30.2 mm
- Basic dynamic load rating: 49.5 kN
- Basic static load rating: 49.5 kN
NTN 5204SCLLD double row angular contact ball bearings
NTN 5204SCLLD double row angular contact ball bearings, contact sealed type, dimensions: 20 x 47 x 20.6 mm
- Brand: NTN
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 20.6 mm
- Basic dynamic load rating: 15.9 kN
- Basic static load rating: 15.9 kN
NTN 3310SC3 Double row angular contact ball bearings
NTN 3310SC3 double row angular contact ball bearings, contact angle: 25°, dimensions: 50 x 110 x 44.4 mm.
- Brand: NTN
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 44.4 mm
- Basic dynamic load rating: 81.5 kN
- Basic static load rating: 81.5 kN
NTN 3206S Double row angular contact ball bearings
NTN 3206S double row angular contact ball bearings, open type, pressed cage, 30 x 62 x 23.8 mm
- Brand: NTN
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 23.8 mm
- Basic dynamic load rating: 29.6 kN
- Basic static load rating: 29.6 kN
NTN 7006 bearings | 30x55x13mm
NTN 7006 bearing, single row angular contact ball bearings, Dimensions:30mm x 55mm x 13mm, Dynamic Load Rating: 13.9kN, Static Load Rating: 9.45kN
- Brand: NTN
- Inside Diameter: 30 mm
- Outside Diameter: 55 mm
- Width: 13 mm
- Basic dynamic load rating: 13.9 kN
- Basic static load rating: 13.9 kN
NTN 7207B bearings | 35x72x17mm
NTN 7207B bearing, single row angular contact ball bearings, Dimensions:35mm x 72mm x 17mm, Dynamic Load Rating: 27.1kN, Static Load Rating: 18.4kN
- Brand: NTN
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 17 mm
- Basic dynamic load rating: 27.1 kN
- Basic static load rating: 27.1 kN
NTN 7206B bearings | 30x62x16mm
NTN 7206B bearing, single row angular contact ball bearings, Dimensions:30mm x 62mm x 16mm, Dynamic Load Rating: 20.5kN, Static Load Rating: 13.5kN
- Brand: NTN
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 16 mm
- Basic dynamic load rating: 20.5 kN
- Basic static load rating: 20.5 kN
NTN 7204B bearings | 20x47x14mm
NTN 7204B bearing, single row angular contact ball bearings, Dimensions:20mm x 47mm x 14mm, Dynamic Load Rating: 13.3kN, Static Load Rating: 7.7kN
- Brand: NTN
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Basic dynamic load rating: 13.3 kN
- Basic static load rating: 13.3 kN
NTN 7306B bearings | 30x72x19mm
NTN 7306B bearing, single row angular contact ball bearings, Dimensions:30mm x 72mm x 19mm, Dynamic Load Rating: 31kN, Static Load Rating: 20.5kN
- Brand: NTN
- Inside Diameter: 30 mm
- Outside Diameter: 72 mm
- Width: 19 mm
- Basic dynamic load rating: 31 kN
- Basic static load rating: 31 kN
NTN 7305B bearings | 25x62x17mm
NTN 7305B bearing, single row angular contact ball bearings, Dimensions:25mm x 62mm x 17mm, Dynamic Load Rating: 24.4kN, Static Load Rating: 14.6kN
- Brand: NTN
- Inside Diameter: 25 mm
- Outside Diameter: 62 mm
- Width: 17 mm
- Basic dynamic load rating: 24.4 kN
- Basic static load rating: 24.4 kN

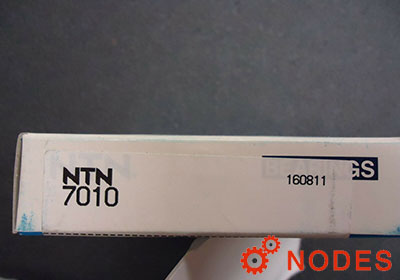

NTN 7010 bearings | 50x80x16mm
NTN 7010 bearing, single row angular contact ball bearings, Dimensions:50mm x 80mm x 16mm, Dynamic Load Rating: 23.7kN, Static Load Rating: 20.1kN
- Brand: NTN
- Inside Diameter: 50 mm
- Outside Diameter: 80 mm
- Width: 16 mm
- Basic dynamic load rating: 23.7 kN
- Basic static load rating: 23.7 kN

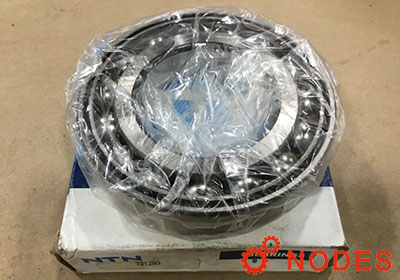

NTN 7212B bearings | 60x110x22mm
NTN 7212B bearing, single row angular contact ball bearings, Dimensions:60mm x 110mm x 22mm, Dynamic Load Rating: 56kN, Static Load Rating: 44.5kN
- Brand: NTN
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 22 mm
- Basic dynamic load rating: 56 kN
- Basic static load rating: 56 kN

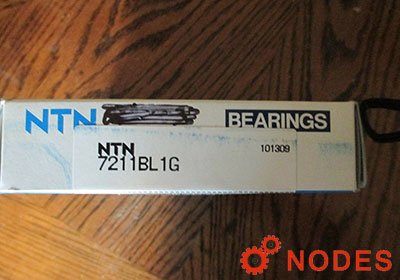

NTN 7211B bearings | 55x100x21mm
NTN 7211B bearing, single row angular contact ball bearings, Dimensions:55mm x 100mm x 21mm, Dynamic Load Rating: 46.5kN, Static Load Rating: 36kN
- Brand: NTN
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 21 mm
- Basic dynamic load rating: 46.5 kN
- Basic static load rating: 46.5 kN

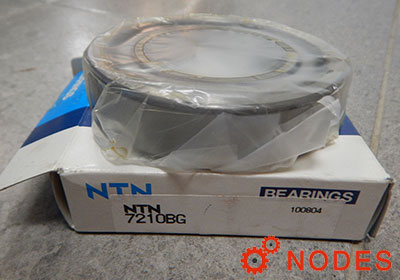

NTN 7210B bearings | 50x90x20mm
NTN 7210B bearing, single row angular contact ball bearings, Dimensions:50mm x 90mm x 20mm, Dynamic Load Rating: 37.5kN, Static Load Rating: 28.6kN
- Brand: NTN
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 20 mm
- Basic dynamic load rating: 37.5 kN
- Basic static load rating: 37.5 kN
NTN 7209B bearings | 45x85x19mm
NTN 7209B bearing, single row angular contact ball bearings, Dimensions:45mm x 85mm x 19mm, Dynamic Load Rating: 36kN, Static Load Rating: 26.2kN
- Brand: NTN
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 19 mm
- Basic dynamic load rating: 36 kN
- Basic static load rating: 36 kN

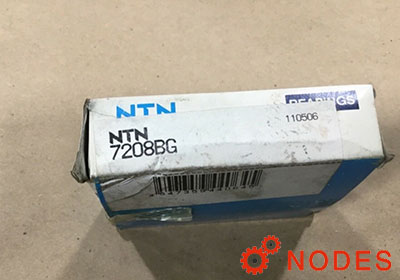

NTN 7208B bearings | 40x80x18mm
NTN 7208B bearing, single row angular contact ball bearings, Dimensions:40mm x 80mm x 18mm, Dynamic Load Rating: 32kN, Static Load Rating: 23kN
- Brand: NTN
- Inside Diameter: 40 mm
- Outside Diameter: 80 mm
- Width: 18 mm
- Basic dynamic load rating: 32 kN
- Basic static load rating: 32 kN

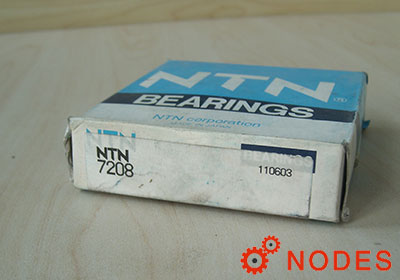

NTN 7208 bearings | 40x80x18mm
NTN 7208 bearing, single row angular contact ball bearings, Dimensions:40mm x 80mm x 18mm, Dynamic Load Rating: 35.5kN, Static Load Rating: 25.1kN
- Brand: NTN
- Inside Diameter: 40 mm
- Outside Diameter: 80 mm
- Width: 18 mm
- Basic dynamic load rating: 35.5 kN
- Basic static load rating: 35.5 kN

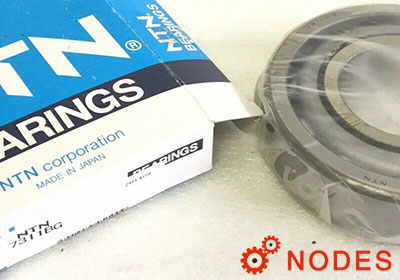

NTN 7311B bearings | 55x120x29mm
NTN 7311B bearing, single row angular contact ball bearings, Dimensions:55mm x 120mm x 29mm, Dynamic Load Rating: 79kN, Static Load Rating: 56.5kN
- Brand: NTN
- Inside Diameter: 55 mm
- Outside Diameter: 120 mm
- Width: 29 mm
- Basic dynamic load rating: 79 kN
- Basic static load rating: 79 kN

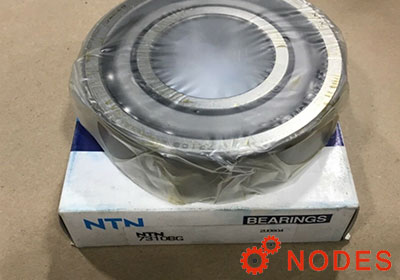

NTN 7310B bearings | 50x110x27mm
NTN 7310B bearing, single row angular contact ball bearings, Dimensions:50mm x 110mm x 27mm, Dynamic Load Rating: 68kN, Static Load Rating: 48kN
- Brand: NTN
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 27 mm
- Basic dynamic load rating: 68 kN
- Basic static load rating: 68 kN
NTN 7309B bearings | 45x100x25mm
NTN 7309B bearing, single row angular contact ball bearings, Dimensions:45mm x 100mm x 25mm, Dynamic Load Rating: 58.5kN, Static Load Rating: 40kN
- Brand: NTN
- Inside Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 25 mm
- Basic dynamic load rating: 58.5 kN
- Basic static load rating: 58.5 kN

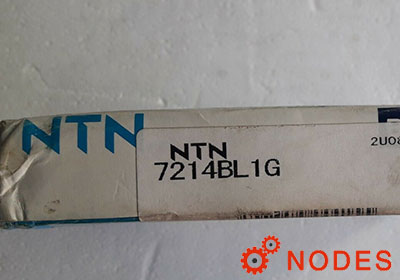

NTN 7214B bearings | 70x125x24mm
NTN 7214B bearing, single row angular contact ball bearings, Dimensions:70mm x 125mm x 24mm, Dynamic Load Rating: 69kN, Static Load Rating: 58kN
- Brand: NTN
- Inside Diameter: 70 mm
- Outside Diameter: 125 mm
- Width: 24 mm
- Basic dynamic load rating: 69 kN
- Basic static load rating: 69 kN

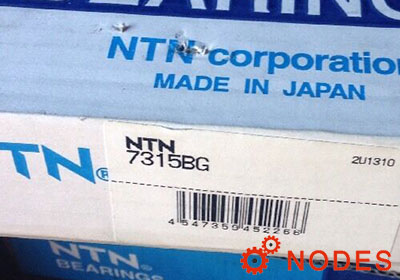

NTN 7315B bearings | 75x160x37mm
NTN 7315B bearing, single row angular contact ball bearings, Dimensions:75mm x 160mm x 37mm, Dynamic Load Rating: 125kN, Static Load Rating: 97.5kN
- Brand: NTN
- Inside Diameter: 75 mm
- Outside Diameter: 160 mm
- Width: 37 mm
- Basic dynamic load rating: 125 kN
- Basic static load rating: 125 kN

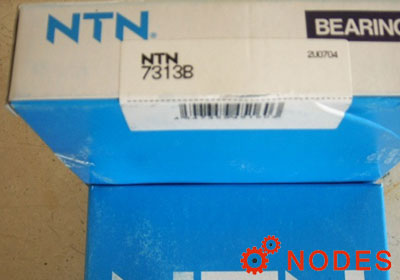

NTN 7313B bearings | 65x140x33mm
NTN 7313B bearing, single row angular contact ball bearings, Dimensions:65mm x 140mm x 33mm, Dynamic Load Rating: 102kN, Static Load Rating: 75kN
- Brand: NTN
- Inside Diameter: 65 mm
- Outside Diameter: 140 mm
- Width: 33 mm
- Basic dynamic load rating: 102 kN
- Basic static load rating: 102 kN

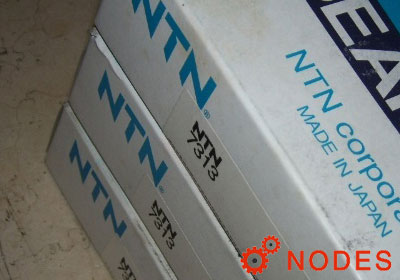

NTN 7313 bearings | 65x140x33mm
NTN 7313 bearing, single row angular contact ball bearings, Dimensions:65mm x 140mm x 33mm, Dynamic Load Rating: 111kN, Static Load Rating: 82kN
- Brand: NTN
- Inside Diameter: 65 mm
- Outside Diameter: 140 mm
- Width: 33 mm
- Basic dynamic load rating: 111 kN
- Basic static load rating: 111 kN

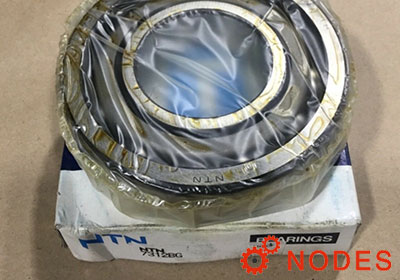

NTN 7312B bearings | 60x130x31mm
NTN 7312B bearing, single row angular contact ball bearings, Dimensions:60mm x 130mm x 31mm, Dynamic Load Rating: 90kN, Static Load Rating: 66kN
- Brand: NTN
- Inside Diameter: 60 mm
- Outside Diameter: 130 mm
- Width: 31 mm
- Basic dynamic load rating: 90 kN
- Basic static load rating: 90 kN

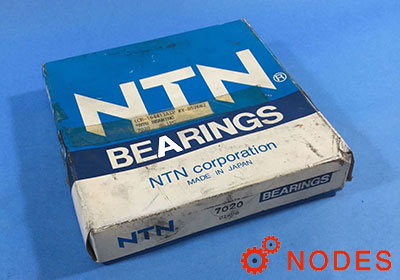

NTN 7020 bearings | 100x150x24mm
NTN 7020 bearing, single row angular contact ball bearings, Dimensions:100mm x 150mm x 24mm, Dynamic Load Rating: 68.5kN, Static Load Rating: 70.5kN
- Brand: NTN
- Inside Diameter: 100 mm
- Outside Diameter: 150 mm
- Width: 24 mm
- Basic dynamic load rating: 68.5 kN
- Basic static load rating: 68.5 kN

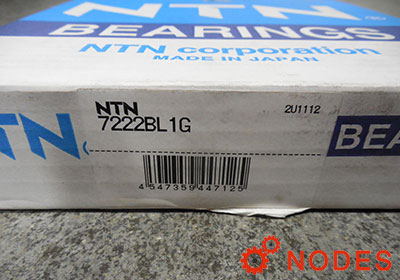

NTN 7222B bearings | 110x200x38mm
NTN 7222B bearing, single row angular contact ball bearings, Dimensions:110mm x 200mm x 38mm, Dynamic Load Rating: 154kN, Static Load Rating: 144kN
- Brand: NTN
- Inside Diameter: 110 mm
- Outside Diameter: 200 mm
- Width: 38 mm
- Basic dynamic load rating: 154 kN
- Basic static load rating: 154 kN

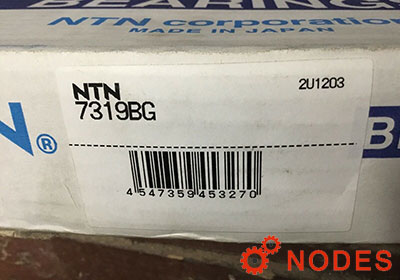

NTN 7319B bearings | 95x200x45mm
NTN 7319B bearing, single row angular contact ball bearings, Dimensions:95mm x 200mm x 45mm, Dynamic Load Rating: 167kN, Static Load Rating: 149kN
- Brand: NTN
- Inside Diameter: 95 mm
- Outside Diameter: 200 mm
- Width: 45 mm
- Basic dynamic load rating: 167 kN
- Basic static load rating: 167 kN

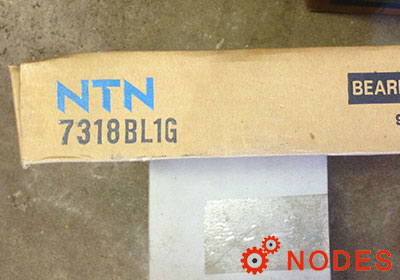

NTN 7318B bearings | 90x190x43mm
NTN 7318B bearing, single row angular contact ball bearings, Dimensions:90mm x 190mm x 43mm, Dynamic Load Rating: 156kN, Static Load Rating: 135kN
- Brand: NTN
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 43 mm
- Basic dynamic load rating: 156 kN
- Basic static load rating: 156 kN

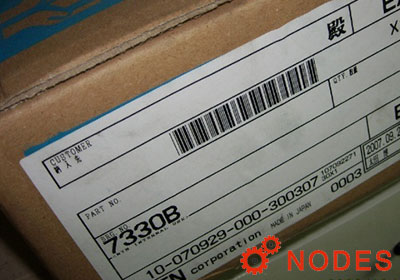

NTN 7330B bearings | 150x320x65mm
NTN 7330B bearing, single row angular contact ball bearings, Dimensions:150mm x 320mm x 65mm, Dynamic Load Rating: 300kN, Static Load Rating: 350kN
- Brand: NTN
- Inside Diameter: 150 mm
- Outside Diameter: 320 mm
- Width: 65 mm
- Basic dynamic load rating: 300 kN
- Basic static load rating: 300 kN
NTN 7301B bearings | 12x37x12mm
NTN 7301B bearing, single row angular contact ball bearings, Dimensions:12mm x 37mm x 12mm, Dynamic Load Rating: 10.5kN, Static Load Rating: 4.95kN
- Brand: NTN
- Inside Diameter: 12 mm
- Outside Diameter: 37 mm
- Width: 12 mm
- Basic dynamic load rating: 10.5 kN
- Basic static load rating: 10.5 kN
NTN 7301 bearings | 12x37x12mm
NTN 7301 bearing, single row angular contact ball bearings, Dimensions:12mm x 37mm x 12mm, Dynamic Load Rating: 11.2kN, Static Load Rating: 5.25kN
- Brand: NTN
- Inside Diameter: 12 mm
- Outside Diameter: 37 mm
- Width: 12 mm
- Basic dynamic load rating: 11.2 kN
- Basic static load rating: 11.2 kN
NTN 7300B bearings | 10x35x11mm
NTN 7300B bearing, single row angular contact ball bearings, Dimensions:10mm x 35mm x 11mm, Dynamic Load Rating: 9.5kN, Static Load Rating: 4.6kN
- Brand: NTN
- Inside Diameter: 10 mm
- Outside Diameter: 35 mm
- Width: 11 mm
- Basic dynamic load rating: 9.5 kN
- Basic static load rating: 9.5 kN
NTN 7300 bearings | 10x35x11mm
NTN 7300 bearing, single row angular contact ball bearings, Dimensions:10mm x 35mm x 11mm, Dynamic Load Rating: 10.1kN, Static Load Rating: 4.95kN
- Brand: NTN
- Inside Diameter: 10 mm
- Outside Diameter: 35 mm
- Width: 11 mm
- Basic dynamic load rating: 10.1 kN
- Basic static load rating: 10.1 kN
NTN 7202 bearings | 15x35x11mm
NTN 7202 bearing, single row angular contact ball bearings, Dimensions:15mm x 35mm x 11mm, Dynamic Load Rating: 9.05kN, Static Load Rating: 4.7kN
- Brand: NTN
- Inside Diameter: 15 mm
- Outside Diameter: 35 mm
- Width: 11 mm
- Basic dynamic load rating: 9.05 kN
- Basic static load rating: 9.05 kN
NTN 7201B bearings | 12x32x10mm
NTN 7201B bearing, single row angular contact ball bearings, Dimensions:12mm x 32mm x 10mm, Dynamic Load Rating: 7kN, Static Load Rating: 3.65kN
- Brand: NTN
- Inside Diameter: 12 mm
- Outside Diameter: 32 mm
- Width: 10 mm
- Basic dynamic load rating: 7 kN
- Basic static load rating: 7 kN
NTN 7201 bearings | 12x32x10mm
NTN 7201 bearing, single row angular contact ball bearings, Dimensions:12mm x 32mm x 10mm, Dynamic Load Rating: 7.6kN, Static Load Rating: 3.95kN
- Brand: NTN
- Inside Diameter: 12 mm
- Outside Diameter: 32 mm
- Width: 10 mm
- Basic dynamic load rating: 7.6 kN
- Basic static load rating: 7.6 kN
