NTN 5209SC3 double row angular contact ball bearings
Also known as : 3209
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 30.2 mm
- Basic dynamic load rating: 49.5 kN
- Basic static load rating: 38 kN
NTN 5209SC3 Bearing

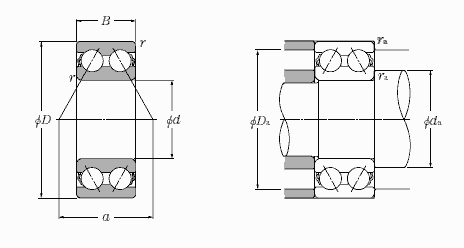

NTN 5209SC3 Bearing details
| Part Number | 5209SC3 |
|---|---|
| Brand | NTN |
| Catagory | Double Row Angular Contact Ball Bearings |
| d | 45 mm |
| D | 85 mm |
| B | 30.2 mm |
| rs min | 1.1 mm |
| Cr | 49.5 kN, Basic load ratings, dynamic |
| C0r | 38 kN, Basic load ratings, static |
| Limiting speeds |
5000 min-1, grease 6700 min-1, oil |
| Load center | 43.4 mm |
| Mass | 0.62 kg |
NTN 5209SC3 double row angular contact ball bearings is designed by arranging two single row angular contact bearings back-to-back in duplex to form one united bearing with a contact angle of 25°.
NTN 5209SC3 bearing cross reference

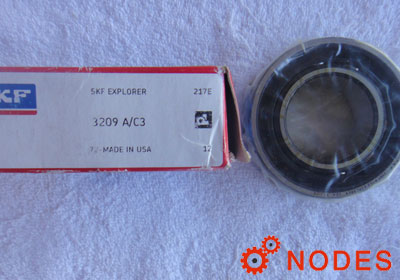

SKF 3209 A/C3 bearing
45mm x 85mm x 30.2mm

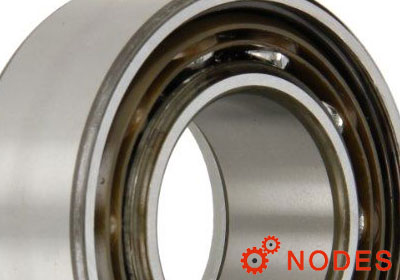

SKF 3209 ATN9 bearing
45mm x 85mm x 30.2mm
FAG 3209-BD-XL bearing
45mm x 85mm x 30.2mm
FAG 3209-BD-XL-TVH bearing
45mm x 85mm x 30.2mm
NTN 7909 bearing
45mm x 68mm x 12mm
NTN 7009 bearing
45mm x 75mm x 16mm
NTN 7209 bearing
45mm x 85mm x 19mm

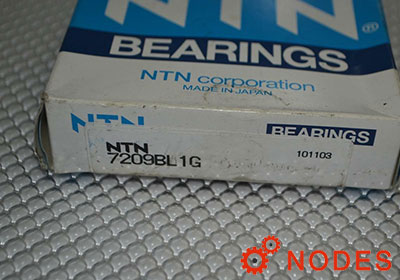

NTN 7209B bearing
45mm x 85mm x 19mm
NTN 7309 bearing
45mm x 100mm x 25mm

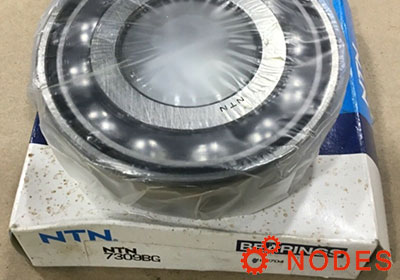

NTN 7309B bearing
45mm x 100mm x 25mm
