NTN 323060 bearings | 300x460x118mm
Also known as : 323060
- Inside Diameter: 300 mm
- Outside Diameter: 460 mm
- Width: 118 mm
- Basic dynamic load rating: 1610 kN
- Basic static load rating: 3150 kN
NTN 323060 Bearing

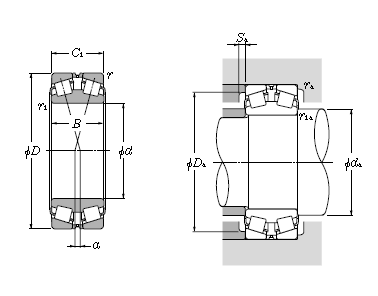

NTN 323060 Bearing details
| Boundary dimensions (mm) |
Basic load ratings (kN) |
Basic load ratings (kgf) |
Limiting speed (min-1) |
Mass (kg) <approx.> |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inner dia. (d) | Outer dia. (D) | Width (B) | Chamfer (rs_min) | Dynamic (Cr) | Static (Cor) | Dynamic (Cr) | Static (Cor) | Grease | Oil | |
| 300 | 460 | 118 | 5 | 1610 | 3150 | 165000 | 320000 | 570 | 760 | 70.7 |
|
Abutment and fillet dimensions (mm) |
||||||||
|---|---|---|---|---|---|---|---|---|
|
da min |
da max |
Da min |
Da max |
Dx <approx.> |
Cy max |
Cz min |
ras max |
rnas max |
| 330 | 425 | 442 | 3 | |||||
Nodes have NTN 323060 bearings in stock. As the inner clearance of NTN double row tapered roller bearings (Inward facing type) is adjusted to a set value, the bearings must be used in combination with components of the same product number, as marked.
