NTN 423068 bearings | 340x520x165mm
Also known as : 423068
- Inside Diameter: 340 mm
- Outside Diameter: 520 mm
- Width: 165 mm
- Basic dynamic load rating: 1890 kN
- Basic static load rating: 3750 kN
NTN 423068 Bearing
NTN 423068 Bearing details
| Boundary dimensions (mm) |
Basic load ratings (kN) |
Basic load ratings (kgf) |
Limiting speed (min-1) |
Mass (kg) <approx.> |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inner dia. (d) | Outer dia. (D) | Width (B) | Chamfer (rs_min) | Dynamic (Cr) | Static (Cor) | Dynamic (Cr) | Static (Cor) | Grease | Oil | |
| 340 | 520 | 165 | 6 | 1890 | 3750 | 193000 | 380000 | 500 | 660 | 113 |
|

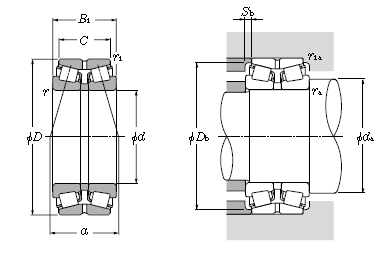

Abutment and fillet dimensions (mm) |
||||||||
|---|---|---|---|---|---|---|---|---|
|
da min |
da max |
Da min |
Da max |
Dx <approx.> |
Cy max |
Cz min |
ras max |
rnas max |
| 368 | 5 | |||||||
Nodes have NTN 423068 bearings in stock. As the inner clearance of NTN double row tapered roller bearings (Outward facing type) is adjusted to a set value, the bearings must be used in combination with components of the same product number, as marked.
