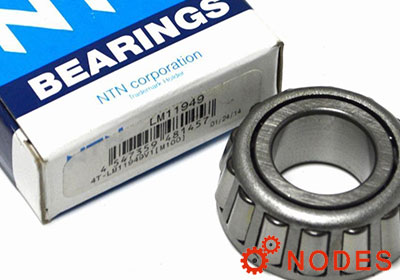

NTN 4T-LM11949/LM11910 Bearing

NTN 4T-LM11949/LM11910 bearings | 19.050x45.237x16.637mm

Also known as : 4T-LM11949/LM11910

  • Inside Diameter: 19.05 mm
  • Outside Diameter: 45.237 mm
  • Width: 16.637 mm
  • Basic dynamic load rating: 28.3 kN
  • Basic static load rating: 28.6 kN

Inquire Now

NTN 4T-LM11949/LM11910 Bearing

NTN 4T-LM11949/LM11910 Bearing details

Boundary dimensions (mm) Basic load ratings
(kN)
Basic load ratings
(kgf)
Limiting speed
(min-1)
Mass
(kg)
<approx.>
Inner dia. (d) Outer dia. (D) Width (B) Chamfer (rs_min) Dynamic (Cr) Static (Cor) Dynamic (Cr) Static (Cor) Grease Oil
19.05  45.237  16.637    28.3  28.6  2880  2920  8900  12000  0.122
Abutment and fillet dimensions
(mm)
da
min
da
max
Da
min
Da
max
Dx
<approx.>
Cy
max
Cz
min
ras
max
rnas
max
              1.3
As for the maximum value for inner and outer ring diameters of bearings whose bearing numbers are marked with "+" (inner ring) and "++" (outer ring), the precision class is an integer for class 4 and class 2 bearings only. Bearings with a # symbol next to the serial number are J-series bearings, and have a different tolerance to other series. For more details, see “Bearing Tolerance” listed in the “NTN ‘Ball and Roller Bearings’ Catalog.”

Nodes have NTN 4T-LM11949/LM11910 bearings in stock. Tapered roller bearings (Inch series), are designed so the inner and outer ring raceway and the apex of the tapered rollers intersect at one point on the bearing centerline.

NTN 4t-lm11949 Bearing

NTN 4t-lm11910 Bearing
