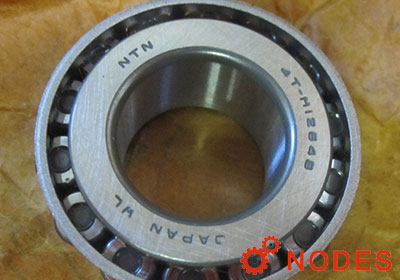

NTN 4T-M12648/M12610 Bearing

NTN 4T-M12648/M12610 bearings | 22.225x50.005x18.288mm

Also known as : 4T-M12648/M12610

  • Inside Diameter: 22.225 mm
  • Outside Diameter: 50.005 mm
  • Width: 18.288 mm
  • Basic dynamic load rating: 38 kN
  • Basic static load rating: 39 kN

Inquire Now

NTN 4T-M12648/M12610 Bearing

NTN 4T-M12648/M12610 Bearing details

Boundary dimensions (mm) Basic load ratings
(kN)
Basic load ratings
(kgf)
Limiting speed
(min-1)
Mass
(kg)
<approx.>
Inner dia. (d) Outer dia. (D) Width (B) Chamfer (rs_min) Dynamic (Cr) Static (Cor) Dynamic (Cr) Static (Cor) Grease Oil
22.225  50.005  18.288    38  39  3850  3950  8000  11000  0.165
Abutment and fillet dimensions
(mm)
da
min
da
max
Da
min
Da
max
Dx
<approx.>
Cy
max
Cz
min
ras
max
rnas
max
              1.3
As for the maximum value for inner and outer ring diameters of bearings whose bearing numbers are marked with "+" (inner ring) and "++" (outer ring), the precision class is an integer for class 4 and class 2 bearings only. Bearings with a # symbol next to the serial number are J-series bearings, and have a different tolerance to other series. For more details, see “Bearing Tolerance” listed in the “NTN ‘Ball and Roller Bearings’ Catalog.”

Nodes have NTN 4T-M12648/M12610 bearings in stock. Tapered roller bearings (Inch series), are designed so the inner and outer ring raceway and the apex of the tapered rollers intersect at one point on the bearing centerline.

NTN 4t-m12648 Bearing

NTN 4t-m12610 Bearing
