SKF PCMF 121407 E bush bearings | 12mm x 14mm x 7mm
Also known as : PCMF121407E
- Inside Diameter: 12 mm
- Outside Diameter: 14 mm
- Width: 7 mm
- Basic dynamic load rating: 4.8 kN
- Basic static load rating: 15 kN
SKF PCMF121407E Bearing
SKF PCMF121407E Bearing details
| number | PCMF121407E |
|---|---|
| Type | SKF PTFE composite bushings |

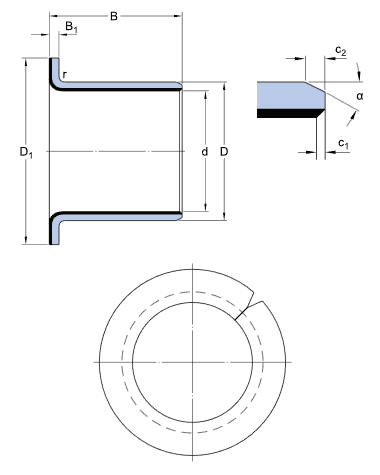

| Dimensions | |
| d | 12 mm |
| D | 14 mm |
| B | 7 mm |
| D1 | 20 mm |
| B1 | 1 mm |
| c1 min. | 0.1 mm |
| c1 max. | 0.6 mm |
| c2 min. | 0.2 mm |
| c2 max. | 1 mm |
| α | 20 ° |
| rmax. | 1 mm |
| Recommended fits | |
| Tolerance shaft | f7 |
| Tolerance housing | H7 |
| Calculation data | |
| Basic dynamic load rating - radial direction, C | 4.8 kN |
| Basic static load rating - radial direction, C0 | 15 kN |
| Specific dynamic load factor, K | 80 N/mm2 |
| Specific static load factor, K0 | 250 N/mm2 |
| Factor depending on material and bearing type, Km | 480 |
| Permissible sliding velocity, v, min. | 0 m/s |
| Permissible sliding velocity, v, max. | 2 m/s |
| Coefficient of friction, u, min. | 0.03 |
| Coefficient of friction, u, max. | 0.25 |
| Mass bushing | 0.0036 kg |
