TIMKEN NJ2324EMA Bearing

TIMKEN NJ2324EMA Cylindrical Roller Bearings | 120x260x86mm

Also known as : NJ2324EMA

  • Inside Diameter: 120 mm
  • Outside Diameter: 260 mm
  • Width: 86 mm
  • Basic dynamic load rating: 902 kN
  • Basic static load rating: 1040 kN

Inquire Now

TIMKEN NJ2324EMA Bearing

TIMKEN NJ2324EMA Bearing details

Bearing Number NJ2324EMA
Brand TIMKEN
Type Cylindrical roller bearings
Design Units METRIC
Bearing Weight 23.6 Kg
52 lb
Type NJ
Tapered Bore N
d - Bore 120 mm
4.7244 in
D - Outer Diameter 260 mm
10.2362 in
C - Inner Ring Width 86.000 mm
3.3858 in
B - Outer Ring Width 86.000 mm
3.3858 in
C0 - Static Radial Rating 1040000 N
234000 lbf
C - Dynamic Radial Rating1 902000 N
203000 lbf
Reference Thermal Speed Rating (Grease) 1700
Reference Thermal Speed Rating (Oil)2 2000
Cg - Geometry Factor3 0.1341
R - Inner Ring "To Clear" Radius4 2.500 mm
0.100 in
r - Outer Ring "To Clear" Radius5 0.100 mm
da - Inner Ring Backing Diameter 146.000 mm
5.700 in
Da - Outer Ring Backing Diameter 0.000 mm
0.000 in

1 Based on 1 X 106 L10 life for the ISO life calculation method.
2 See thermal speed ratings in the engineering section.
3 Geometry constant for Lubrication Life Adjustment Factor a3l.
4 Maximum housing fillet radius that bearing corners will clear.
5 Maximum shaft fillet radius that bearing corners will clear.

As TIMKEN bearing distributor, Nodes bearings have TIMKEN NJ2324EMA bearings in stock.

TIMKEN NJ2324EMA bearing cross reference

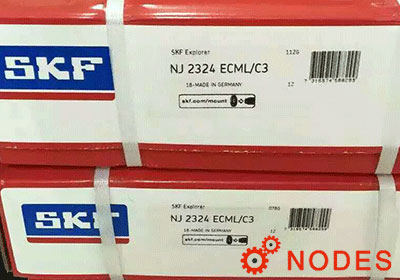

SKF NJ2324ECML/C3 bearing
120mm x 260mm x 86mm
