TIMKEN NU324EMA Bearing

TIMKEN NU324EMA Cylindrical Roller Bearings | 120x260x55mm

Also known as : NU324EMA

  • Inside Diameter: 120 mm
  • Outside Diameter: 260 mm
  • Width: 55 mm
  • Basic dynamic load rating: 594 kN
  • Basic static load rating: 614 kN

Inquire Now

TIMKEN NU324EMA Bearing

TIMKEN NU324EMA Bearing details

Bearing Number NU324EMA
Brand TIMKEN
Type Cylindrical roller bearings
Design Units METRIC
Bearing Weight 14.70 Kg
32.400 lb

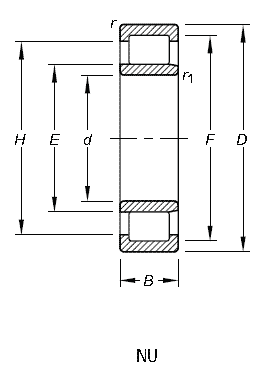

Type NU
Tapered Bore N
d - Bore 120 mm
4.7244 in
D - Outer Diameter 260 mm
10.2362 in
C - Inner Ring Width 55.000 mm
2.1654 in
B - Outer Ring Width 55.000 mm
2.1654 in
C0 - Static Radial Rating 614000 N
138000 lbf
C - Dynamic Radial Rating1 594000 N
134000 lbf
Reference Thermal Speed Rating (Grease) 2300
Reference Thermal Speed Rating (Oil)2 2700
Cg - Geometry Factor3 0.1177
R - Inner Ring "To Clear" Radius4 2.500 mm
0.100 in
r - Outer Ring "To Clear" Radius5 2.500 mm
0.100 in
da - Inner Ring Backing Diameter 147.000 mm
5.800 in
Da - Outer Ring Backing Diameter 0.000 mm
0.000 in

1 Based on 1 X 106 L10 life for the ISO life calculation method.
2 See thermal speed ratings in the engineering section.
3 Geometry constant for Lubrication Life Adjustment Factor a3l.
4 Maximum housing fillet radius that bearing corners will clear.
5 Maximum shaft fillet radius that bearing corners will clear.

As TIMKEN bearing distributor, Nodes bearings have TIMKEN NU324EMA bearings in stock.

TIMKEN NU324EMA bearing cross reference

NSK NU324 bearing
120mm x 260mm x 55mm
NSK NU324EM bearing
120mm x 260mm x 55mm
FAG NU324-E-XL-TVP2 bearing
120mm x 260mm x 55mm

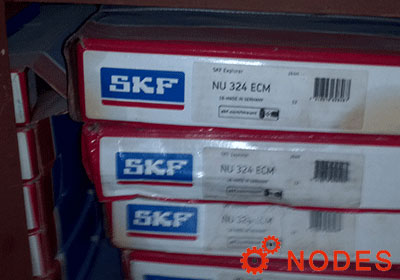

SKF NU324ECM bearing
120mm x 260mm x 55mm
TIMKEN NJ2324EMA bearing
120mm x 260mm x 86mm
TIMKEN NJ324EMA bearing
120mm x 260mm x 55mm
TIMKEN NUP2324EMA bearing
120mm x 260mm x 86mm
TIMKEN NU2324EMA bearing
120mm x 260mm x 86mm
