FAG HS7015-E-T-P4S Bearing

FAG HS7015-E-T-P4S spindle bearings | 75x115x20mm

Also known as : HS7015-E-T-P4S

• Inside Diameter: 75 mm
• Outside Diameter: 115 mm
• Width: 20 mm
• Basic dynamic load rating: 23.9 kN
• Basic static load rating: 17 kN

Inquire Now

FAG HS7015-E-T-P4S Bearing

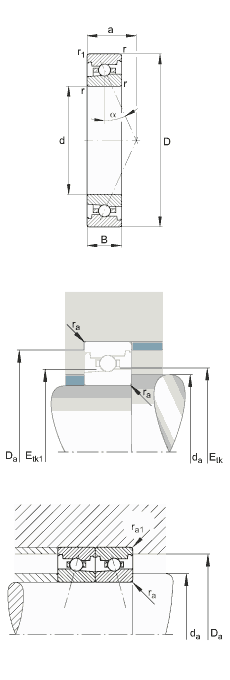

Number	HS7015-E-T-P4S
Type	FAG spindle bearings adjusted, in pairs or sets, contact angle a = 25°, restricted tolerances
d	75 mm
D	115 mm
B	20 mm
a	32,1 mm
Da	107 mm	Tolerance: H12
da	82 mm	Tolerance: h12
Etk max	92,4 mm
Etk min	90,2 mm
Etk1 max	92,4 mm
Etk1 min	87,3 mm
r1 min	1,1 mm
ra max	1 mm
ra1 max	0,6 mm
rmin	1,1 mm
α	25 °	Contact angle
m	0,678 kg	≈ Mass
Cr	23900 N	Basic dynamic load rating, radial
C0r	17000 N	Basic static load rating, radial
Cur	1740 N	Fatigue limit load, radial
nG Fett	15000 1/min	Limiting speed for grease lubrication The limiting speeds are based on elastically preloaded single bearings.
nG Öl	24000 1/min	Limiting speed for minimal quantity oil lubrication The limiting speeds are based on elastically preloaded single bearings.
FV L	144 N	Preload force
FV M	431 N	Preload force
FV H	863 N	Preload force
KaE L	415 N	Lift-off force
KaE M	1268 N	Lift-off force
KaE H	2587 N	Lift-off force
ca L	135 N/µm	Axial rigidity
ca M	200 N/µm	Axial rigidity
ca H	261 N/µm	Axial rigidity

Nodes bearings have FAG HS7015-E-T-P4S spindle bearings in stock, FAG bearings, precision spindle bearings, adjusted, in pairs or sets, contact angle α = 25°, restricted tolerances.
