INA GE100-FW-2RS Bearing

INA GE100-FW-2RS plain bearings | 100x160x85mm

Also known as : GE100-FW-2RS

• Inside Diameter: 100 mm
• Outside Diameter: 160 mm
• Width: 85 mm
• Basic dynamic load rating: 1850 kN
• Basic static load rating: 3080 kN

Inquire Now

INA GE100-FW-2RS Bearing

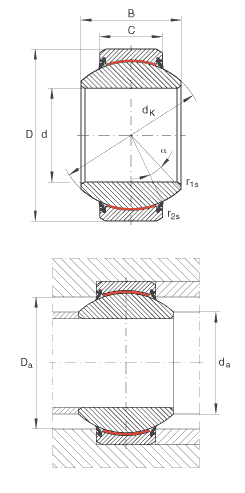

Number	GE100-FW-2RS
Type	Spherical plain bearings
d	100 mm	Tolerance: 0/-0,02
D	160 mm	Tolerance: 0/-0,025
B	85 mm	Tolerance: 0/-0,2
C	55 mm	Tolerance: 0/-0,5
Da min	134 mm
da max	111,2 mm
dK	140 mm
r1s min	1 mm	Chamfer dimension
r2s min	1 mm	Chamfer dimension
α	14 °
m	6 kg	Mass
Cr	1850000 N	Basic dynamic load rating, radial
C0r	3080000 N	Basic static load rating, radial

As INA bearing distributor, Nodes bearings have INA GE100-FW-2RS radial spherical plain bearings in stock. GE100-FW-2RS, maintenance-free, to DIN ISO 12 240-1, lip seals on both sides.
