INA GE50-AW Bearing

INA GE50-AW plain bearings | 50x130x42.5mm

Also known as : GE50-AW

  • Inside Diameter: 50 mm
  • Outside Diameter: 130 mm
  • Width: 42.5 mm
  • Basic dynamic load rating: 1950 kN
  • Basic static load rating: 3250 kN

Inquire Now

INA GE50-AW Bearing

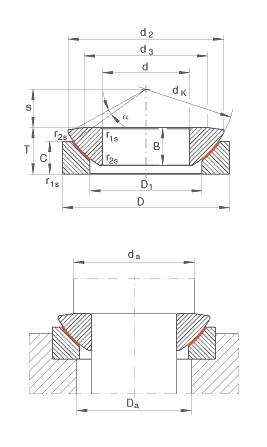

INA GE50-AW Bearing details

Number GE50-AW
Type Spherical plain bearings
d 50 mm  Tolerance: 0/-0,012
D 130 mm  Tolerance: 0/-0,018
T 42,5 mm  Tolerance: 0/-0,4
B 33,5 mm  Tolerance: 0/-0,24
C 32 mm  Tolerance: 0/-0,24
D1 69 mm
Da min 75 mm
d2 122,5 mm
d3 98 mm
da max 98 mm
dK 140 mm
r1s min 1 mm  Chamfer dimension
r2s min 0,3 mm  Chamfer dimension
s 30 mm
α 5 °
m 3,4 kg  Mass
Ca 1950000 N  Basic dynamic load rating, axial
C0a 3250000 N  Basic static load rating, axial

As INA bearing distributor, Nodes bearings have INA GE50-AW Axial spherical plain bearings in stock. GE50-AW.
