INA GE8-DO Bearing

INA GE8-DO plain bearings | 8x16x8mm

Also known as : GE8-DO

  • Inside Diameter: 8 mm
  • Outside Diameter: 16 mm
  • Width: 8 mm
  • Basic dynamic load rating: 5.59 kN
  • Basic static load rating: 28 kN

Inquire Now

INA GE8-DO Bearing

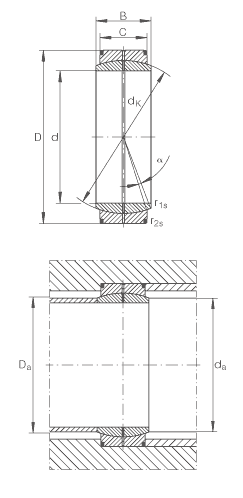

INA GE8-DO Bearing details

Number GE8-DO
Type Spherical plain bearings
d 8 mm  Tolerance: 0/-0,008
D 16 mm  Tolerance: 0/-0,008
B 8 mm  Tolerance: 0/-0,12
C 5 mm  Tolerance: 0/-0,24
Da min 12,5 mm
da max 10,2 mm
dK 13 mm  No lubrication groove on spherical inner ring surface
r1s min 0,3 mm  Chamfer dimension
r2s min 0,3 mm  Chamfer dimension
α 15 °
m 0,007 kg  Mass
Cr 5590 N  Basic dynamic load rating, radial
C0r 28000 N  Basic static load rating, radial

As INA bearing distributor, Nodes bearings have INA GE8-DO radial spherical plain bearings in stock. GE8-DO, requiring maintenance, to DIN ISO 12 240-1.
