INA GE8-FO plain bearings | 8x19x11mm
Also known as : GE8-FO
- Inside Diameter: 8 mm
- Outside Diameter: 19 mm
- Width: 11 mm
- Basic dynamic load rating: 8.16 kN
- Basic static load rating: 40.8 kN
INA GE8-FO Bearing

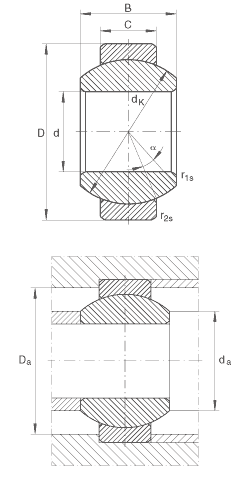

INA GE8-FO Bearing details
| Number | GE8-FO | |
|---|---|---|
| Type | Spherical plain bearings | |
| d | 8 mm | Tolerance: 0/-0,008 |
| D | 19 mm | Tolerance: 0/-0,009 |
| B | 11 mm | Tolerance: 0/-0,12 |
| C | 6 mm | Tolerance: 0/-0,24 |
| Da min | 15,5 mm | |
| da max | 11,6 mm | |
| dK | 16 mm | No lubrication groove on spherical inner ring surface |
| r1s min | 0,3 mm | Chamfer dimension |
| r2s min | 0,3 mm | Chamfer dimension |
| α | 21 ° | |
| m | 0,014 kg | Mass |
| Cr | 8160 N | Basic dynamic load rating, radial |
| C0r | 40800 N | Basic static load rating, radial |
As INA bearing distributor, Nodes bearings have INA GE8-FO radial spherical plain bearings in stock. GE8-FO, requiring maintenance, to DIN ISO 12 240-1.
