KAYDON KAA10CL0 thin section bearings, radial contact
Also known as : KAA10CL0
- Inside Diameter: 1 inches
- Outside Diameter: 1.375 inches
- Width: 0.1875 inches
- Basic dynamic load rating: 188 lbs
- Basic static load rating: 290 lbs
KAYDON KAA10CL0 Bearing
KAYDON KAA10CL0 Bearing details
| Kaydon part number | KAA10CL0 |
|---|---|
| Bore | 1.000 inches |
| Outside dia. | 1.375 inches |
| Width | 0.1875 inches |
| Land dia. L1 | 1.140 inches |
| Land dia. L2 | 1.235 inches |
| Dynamic Kaydon radial | 188 lbs |
| Dynamic ISO radial | 558 lbs |
| Static Radial | 290 lbs |
| Approx. weight | 0.026 lbs |
As KAYDON bearings distributor, Nodes bearings have KAYDON KAA10CL0 open thin section bearings in stock, Reali-Slim open bearings, KAA series, Type C, radial contact.
KAYDON KAA10CL0 bearing cross reference
KAYDON KAA10AG0 bearing
1.000" x 1.375" x 0.1875"
KAYDON KAA10XL0 bearing
1.000" x 1.375" x 0.1875"

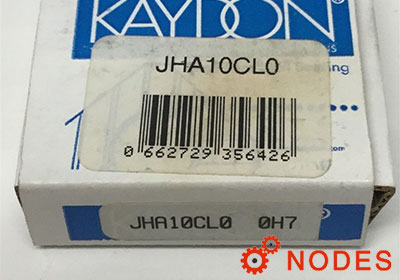

KAYDON JHA10CL0 bearing
1.000" x 1.375" x 0.25"

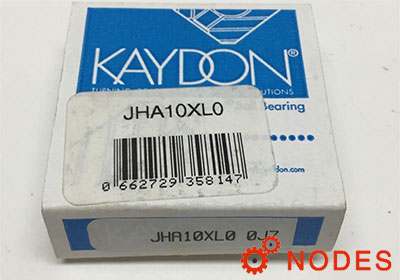

KAYDON JHA10XL0 bearing
1.000" x 1.375" x 0.25"
KAYDON SAA10AG0 bearing
1.000" x 1.375" x 0.1875"
KAYDON SAA10CL0 bearing
1.000" x 1.375" x 0.1875"
KAYDON SAA10XL0 bearing
1.000" x 1.375" x 0.1875"
