KAYDON KAA10XL0 Bearing

KAYDON KAA10XL0 thin section bearings, four-point contact

Also known as : KAA10XL0

  • Inside Diameter: 1 inches
  • Outside Diameter: 1.375 inches
  • Width: 0.1875 inches
  • Basic dynamic load rating: 247 lbs
  • Basic static load rating: 730 lbs

Inquire Now

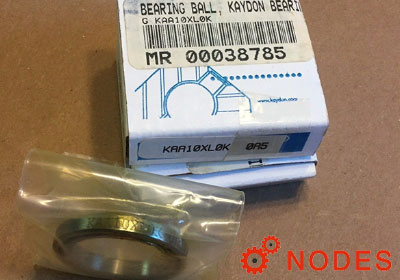

KAYDON KAA10XL0 Bearing

KAYDON KAA10XL0 Bearing details

Kaydon part number KAA10XL0
Bore 1.000 inches
Outside dia. 1.375 inches
Width 0.1875 inches
Land dia. L1 1.140 inches
Land dia. L2 1.235 inches
Dynamic radial 247 lbs
Dynamic thrust 370 lbs
Dynamic moment 110 lbs
Static radial 290 lbs
Static thrust 730 lbs
Static moment 170 lbs
Approx. weight 0.026 lbs

As KAYDON bearings distributor, Nodes bearings have KAYDON KAA10XL0 open thin section bearings in stock, Reali-Slim open bearings, KAA series, Type X -- four-point contact.

KAYDON KAA10XL0 bearing cross reference

KAYDON KAA10AG0 bearing
1.000" x 1.375" x 0.1875"
KAYDON KAA10CL0 bearing
1.000" x 1.375" x 0.1875"
KAYDON JHA10CL0 bearing
1.000" x 1.375" x 0.25"
KAYDON JHA10XL0 bearing
1.000" x 1.375" x 0.25"
KAYDON SAA10AG0 bearing
1.000" x 1.375" x 0.1875"
KAYDON SAA10CL0 bearing
1.000" x 1.375" x 0.1875"
KAYDON SAA10XL0 bearing
1.000" x 1.375" x 0.1875"
