SKF KR16 PPSKA cam follower

SKF KR16 PPSKA cam followers | Dimensions D:16mm, d:6mm, B:2

Also known as : KR16 PPSKA

• D: 16 mm
• d: 6 mm
• B: 28 mm
• Cr: 3.14 kN
• C0r: 3.2 kN

Inquire Now

SKF KR16 PPSKA Bearing

Number	KR 16 PPSKA PPSKA: with a PA66 axial sliding and sealing ring on both sides, improved crowned profile of the outer ring running surface and a hexagonal recess in the head of the stud, no relubrication features
Type	SKF cam follower

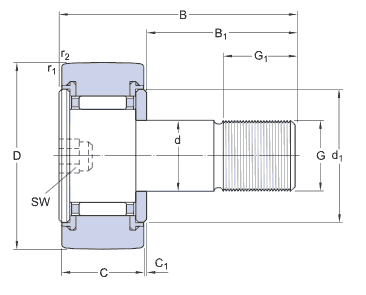

Dimensions
D	16 mm
d	6 mm
B	28 mm
C	11 mm
B1	16 mm
C1	0.6 mm
d1	12.5 mm
G	M 6
G1	8 mm
SW	4 mm
r1,2 min	0.15 mm
Calculation data
Basic dynamic load rating, C	3.14 KN
Basic static load rating, C0	3.2 KN
Fatigue load limit, Pu	0.345 KN
Maximum dynamic radial loads, Fr max.	2.9 KN
Maximum static radial loads, F0r max.	4.15 KN
Limiting speed	6000 r/min
Mounting information
Recommended tighthening torque	3 N.M
Included products
Hexagonal nut	M 6x1
Associated products
Plug	VD1
Mass
Mass cam follower	0.019 kg
