SKF KRV62PPA cam followers | Dimensions D:62mm, d:24mm, B:80
Also known as : KRV62PPA
- D: 62 mm
- d: 24 mm
- B: 80 mm
- Cr: 31.4 kN
- C0r: 72 kN
SKF KRV62PPA Bearing
SKF KRV62PPA Bearing details
| Number | KRV 62 PPA |
|---|---|
| Type | SKF cam follower with an axial sliding ring on both sides, full complement needle roller set |

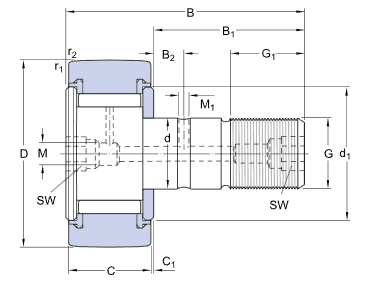

| Dimensions | |
| D | 62 mm |
| d | 24 mm |
| B | 80 mm |
| C | 29 mm |
| B1 | 49.5 mm |
| B2 | 11 mm |
| C1 | 0.8 mm |
| d1 | 44 mm |
| G | M 24x1.5 |
| G1 | 25 mm |
| M | 8 mm |
| M1 | 4 mm |
| SW | 14 mm |
| r1,2 min | 1 mm |
| Calculation data | |
| Basic dynamic load rating, C | 31.4 KN |
| Basic static load rating, C0 | 72 KN |
| Fatigue load limit, Pu | 9 KN |
| Maximum dynamic radial loads, Fr max. | 72 KN |
| Maximum static radial loads, F0r max. | 102 KN |
| Limiting speed | 1700 r/min |
| Mounting information | |
| Recommended tighthening torque | 220 N.M |
| Included products | |
| Grease fitting | NIP A3x9.5 |
| Hexagonal nut | M 24x1.5 |
| Mass | |
| Mass cam follower | 0.79 kg |
KRV 62 PPA
- KRV: Cam follower fitted with a full complement of needle rollers
- 62: D=62mm
- PPA: KR design with a PA66 axial sliding and sealing ring on both sides; improved crowned profile of the outer ring running surface
SKF KRV62PPA bearing cross reference
INA KRV62-PP bearing
D:62mm, d1:24mm, B:80mm
SKF KRE62PPA bearing
D:62mm, d:28mm, B:80mm
