SKF NUKRE47A cam followers
Also known as : NUKRE47A
- D: 47 mm
- d: 24 mm
- B: 66 mm
- Cr: 28.6 kN
- C0r: 33.5 kN
SKF NUKRE47A Bearing
SKF NUKRE47A Bearing details
| Number | NUKRE 47 A |
|---|---|
| Type | SKF Cam follower based on a double row full complement cylindrical roller bearing with two integral outer ring flanges, with an eccentric collar pressed onto the stud |

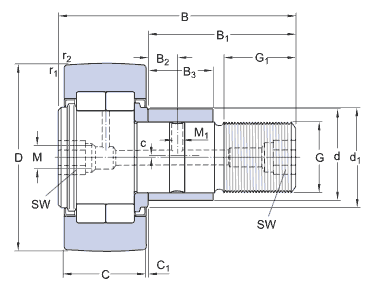

| Dimensions | |
| D | 47 mm |
| d | 24 mm |
| B | 66 mm |
| C | 24 mm |
| B1 | 40.5 mm |
| B2 | 9 mm |
| C1 | 0.8 mm |
| d1 | 27 mm |
| G | M 20x1.5 |
| G1 | 21 mm |
| M | 6 mm |
| M1 | 4 mm |
| SW | 10 mm |
| c | 1 mm |
| r1,2 min | 1 mm |
| Calculation data | |
| Basic dynamic load rating, C | 28.6 KN |
| Basic static load rating, C0 | 33.5 KN |
| Fatigue load limit, Pu | 3.9 KN |
| Maximum dynamic radial loads, Fr max. | 17.6 KN |
| Maximum static radial loads, F0r max. | 25 KN |
| Limiting speed | 3800 r/min |
| Mounting information | |
| Recommended tighthening torque | 120 N.M |
| Included products | |
| Grease fitting | NIP A2x7.5 |
| Hexagonal nut | M 20x1.5 |
| Mass | |
| Mass cam follower | 0.4 kg |
NUKRE 47 A
- NUKRE: Cam follower based on a double row full complement cylindrical roller bearing with two integral outer ring flanges, with an eccentric collar pressed onto the stud
- 47: D=47mm
- A: Improved crowned profile of the outer ring running surface (NUKR design)
SKF NUKRE47A bearing cross reference
INA NUKR47 bearing
D:47mm, d1:20mm, B:66mm
