IKO crossed Roller Bearings

IKO crossed Roller Bearings are compact bearings with their rollers alternately crossed at right angles to each other between inner and outer rings. They can take loads from any directions at the same time such as radial, thrust and moment loads. The rollers make line-contact with raceway surfaces, and, therefore, elastic deformation due to bearing loads is very small. These bearings are widely used in the rotating parts of industrial robots, machine tools, medical equipment, etc., which require compactness, high rigidity and high rotational accuracy.

In addition, IKO bearings made of stainless steel or those with inner and outer rings provided with mounting holes are also available on request.

IKO crossed Roller Bearings

IKO Crossed Roller Bearing Type

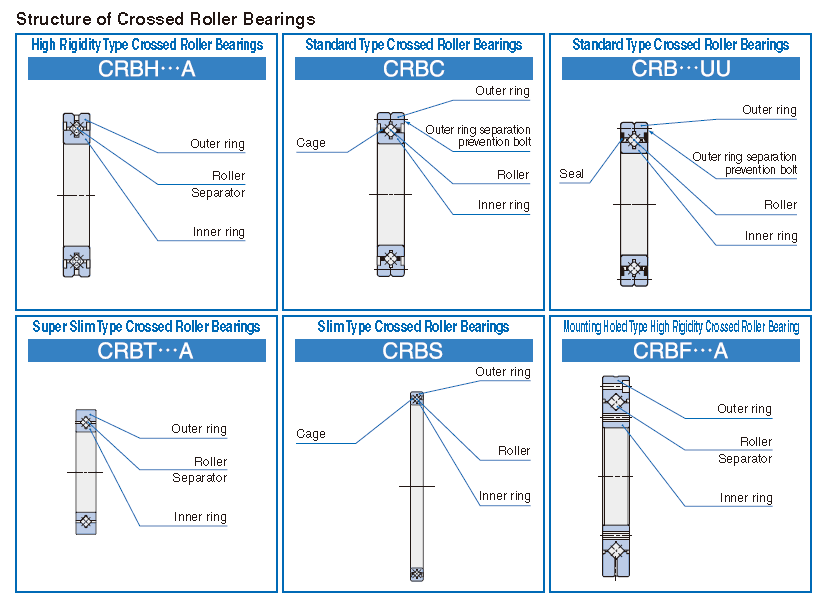

Structure of Crossed Roller Bearings

IKO High Rigidity Type Crossed Roller Bearings

Both inner and outer rings have a solid one-piece construction. Therefore, high accuracy and high rigidity are achieved, and mounting errors can be minimized. As separators are incorporated between the cylindrical rollers for smooth rotation, these IKO bearings are suitable for applications where rotational speed is comparatively high.

IKO Standard Type Crossed Roller Bearings

The outer ring is made of two split pieces, which are bolted together to prevent separation during transportation or mounting. So, handling is easy.

IKO Super Slim Type Crossed Roller Bearings

This Type is extremely compact bearing having 5.5mm of sectional height and 5mm of width. Separators are incorporated between Cylindrical rollers for smooth rotation. These compactness, lightness and smoothness contribute downsizing of the machine and saving driving power.

IKO Slim Type Crossed Roller Bearings

These IKO bearings are slim bearings having a small outside diameter, in comparison with the bore diameter, and a narrow width. The type with cage and the type with separator provide smooth rotation and are suitable for applications where rotational speed is comparatively high.

IKO Mounting Holed Type High Rigidity Crossed Roller Bearing

Mounting holes are prepared on outer ring and inner ring providing easy mounting together with high rigidity and high accuracy.

IKO Crossed Roller Bearing Type
Type With Cage With Separator Full complement
High Rigidity Type Crossed Roller Bearings
CRBH
Open type - CRBH ... A -
Sealed type - CRBH ... AUU -
Standard Type Crossed Roller Bearings
CRBC´╝îCRB
Open type CRBC - CRB
Sealed type CRBC ... UU - CRB ... UU
Super Slim Type Crossed Roller Bearings
CRBT
Open type - CRBT ... A -
Slim Type Crossed Roller Bearings
CRBS
Open type CRBS - CRBS ... V
Sealed type - CRBS ... AUU CRBS ... VUU
Mounting Holed Type High Rigidity Crossed Roller Bearing
CRBF
Open type - CRBF ... A -
Sealed type - CRBF ... AUU -
