INA GE30-SW Bearing

INA GE30-SW plain bearings | 30x55x17mm

Also known as : GE30-SW

  • Inside Diameter: 30 mm
  • Outside Diameter: 55 mm
  • Width: 17 mm
  • Basic dynamic load rating: 194 kN
  • Basic static load rating: 323 kN

Inquire Now

INA GE30-SW Bearing

INA GE30-SW Bearing details

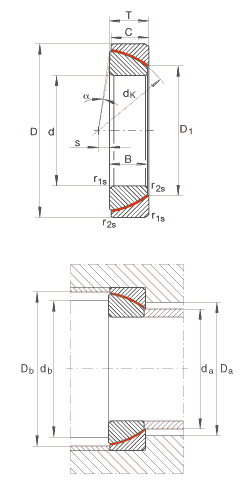

Number GE30-SW
Type Spherical plain bearings
d 30 mm  Tolerance: 0/-0,012
D 55 mm  Tolerance: 0/-0,016
T 17 mm  Tolerance: +/-0,25
B 16 mm  Tolerance: 0/-0,24
C 16 mm  Tolerance: 0/-0,24
D1 36,1 mm
Da min 40,5 mm
Db min 50,5 mm
da max 34,6 mm
db max 45 mm
dK 50 mm
r1s min 1 mm  Chamfer dimension
r2s min 0,3 mm  Chamfer dimension
s 2 mm
α 2,3 °
m 0,21 kg  Mass
Cr 194000 N  Basic dynamic load rating, radial
C0r 323000 N  Basic static load rating, radial

As INA bearing distributor, Nodes bearings have INA GE30-SW Angular contact spherical plain bearings in stock. GE30-SW.
