SKF bushings selection

SKF bushings selection provide general technical information as well as comparisons of different materials and designs. Regarding SKF rolling bearing, please refer to SKF bearing selection.

The performance of SKF plain bearings, which also includes bushings, thrust washers as well as strips, depends mainly on the interaction of load, lubrication, surface roughness, sliding velocity, and operating temperature in specific applications.

Sliding material and SKF bushing type selection guides

The following overviews provide comparisons that can be used as a preselection between the different sliding materials and bushing types.

Operating characteristics of SKF plain bearing types and materials

  SKF plain bearing types and materials
Operating
characteristics
Solid bronze  Sintered bronze  Wrapped bronze  PTFE composite  POM composite  PTFE polyamide  Filament wound
Self-lubricating performance not suitable good  not suitable excellent  good  excellent  excellent
Maintenance-free operation not suitable good  suitable excellent good  excellent  excellent
Dirty environments good suitable excellent not suitable suitable not suitable good
Corrosion resistance good suitable good suitable suitable excellent  excellent
High temperatures good> not suitable good excellent  suitable suitable good
Heavy loads suitable not suitable suitable good  excellent suitable good
Shock loads/vibrations good suitable good suitable suitable not suitable excellent
High sliding velocity not suitable excellent suitable good  good  suitable not suitable
Low friction not suitable good  not suitable excellent  excellent suitable excellent
Poor shaft surface finish good not suitable suitable not suitable suitable suitable suitable
Small operating clearance not suitable suitable suitable excellent  good  suitable not suitable
Insensitive to misalignment good suitable suitable not suitable suitable suitable good

The above table compares the operating characteristics of the different bearing types and sliding materials.

Ambient temperature range

Ambient temperature ranges of different SKF sliding materials under normal operating conditions
Ambient temperature ranges of different SKF sliding materials under normal operating conditions

The above diagram compares the permissible ambient temperature ranges of the different bushing types and sliding materials under normal operating conditions. The temperature ranges for SKF solid and wrapped bronze bushings can be extended by using special lubricants.

Coefficient of friction

The primary factors that affect the friction of SKF sliding materials against their mating surfaces include load, sliding velocity, surface roughness of the mating surface and lubrication conditions. Lower coefficients of friction are obtained under heavy specific loads at low sliding velocities, except for SKF sintered bronze. Both higher and lower friction can occur under extreme conditions.

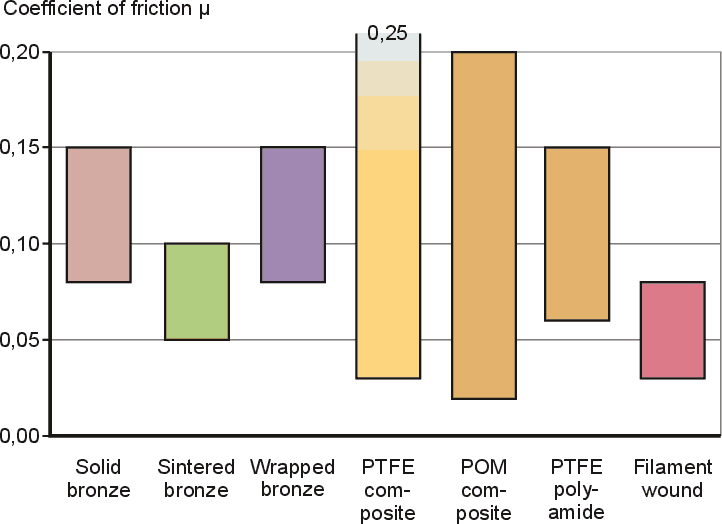

Coefficient of friction under dry or initially lubricated operating conditions (typical values) of different SKF sliding
Coefficient of friction under dry or initially lubricated operating conditions (typical values) of different SKF sliding

The above diagram compares the coefficient of friction under dry or initially lubricated operating conditions of different SKF sliding materials.

Load capacity

The load carrying capacity of a specific bushing depends on several factors including the type of load, sliding velocity and frequency of oscillation.

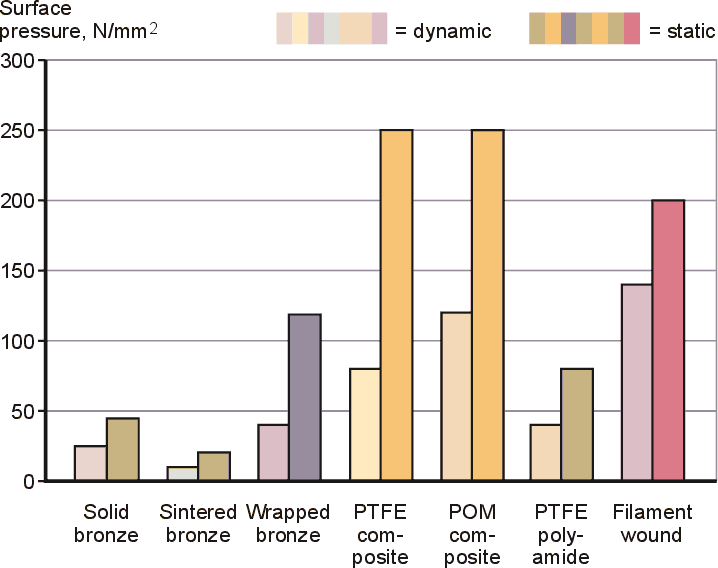

Permissible specific bearing load p at sliding velocities v < 0,01 m/s (dynamic) and v = 0 m/s (static) of different SKF
Permissible specific bearing load p at sliding velocities v < 0,01 m/s (dynamic) and v = 0 m/s (static) of different SKF

The above diagram compares the permissible specific bearing load of different SKF sliding materials under dynamic and static conditions.

Siding velocity

All sliding materials supplied by SKF can operate under rotational, oscillating and linear movements. The permissible sliding velocity for a specific application also depends on load, shaft surface and heat dissipation.

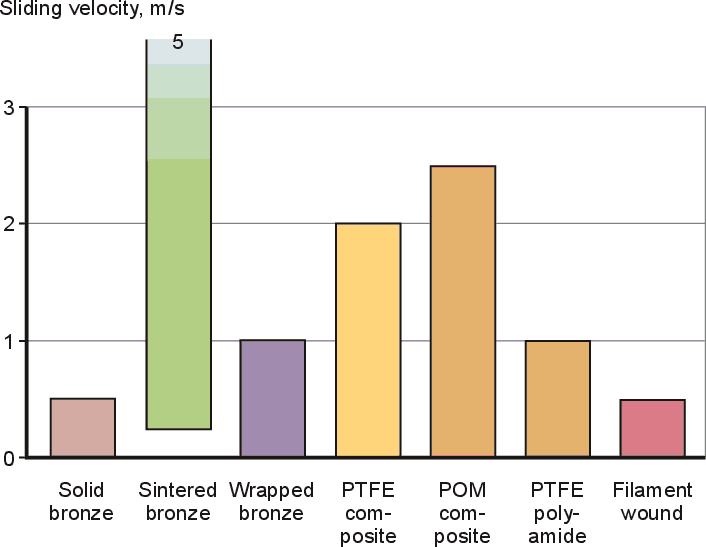

Permissible continuous sliding velocity at a load p < 1 N/mm2 under dry or initially lubricated operating conditions of different SKF sliding materials
Siding velocity of SKF bushings

The above diagram compares the permissible continuous sliding velocity of different SKF sliding materials.

Shaft recommendations

Larger tolerance classes can be applied when the application demands are moderate.
The surface roughness often has a significant influence on service life. However, a surface roughness with a value greater than 0,4 mm may have a negative effect.

The heavier the load, the harder the shaft should be. The higher the risk for embedded contaminants, the more a harder shaft is required.

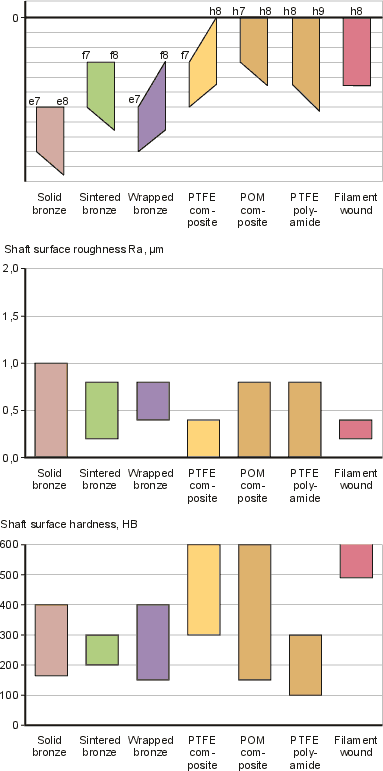

SKF shaft recommendations for ISO tolerance classes, surface roughness and hardness of different SKF sliding materials
SKF shaft recommendations

The above diagram compares the SKF shaft recommendations for ISO tolerance classes, surface roughness and hardness of different SKF sliding materials.

Selecting SKF bush bearing size

The load carrying ability and wear behaviour of SKF plain bearings are determined by the specific conditions of a particular application. Therefore, any calculation can only provide approximate values. To determine the required size of bushings, washers or strips, the load carrying capacity, the service life requirements, operational reliability and a set of given operating conditions (such as load, sliding velocity) need to be considered.

For composite bushings and thrust washers, the load carrying capacity is expressed by the basic dynamic load rating C and the basic static load rating C0.

When determining the required size of bronze, polyamide and filament wound bushings as well as strips, the stresses occurring in the sliding layer and sliding velocity should not exceed the permissible values.

For additional information about calculations on bearing life and size, refer to SKF bearing size.

Basic load ratings

Basic dynamic load ratings

For composite materials the basic dynamic load rating C is used together with other influencing factors, to determine the basic rating life of a bearing. As a rule it represents the maximum load that a bearing can sustain at room temperature when the sliding contact surfaces are in motion. The maximum permissible load in any individual application should always be considered in relation to the desired rating life. The basic dynamic load ratings quoted in the product tables are based on the effective projected sliding surface and the specific load factor K that takes the different composite materials into consideration.

In this definition it is assumed that the load acting on a bushing or flanged bushing is purely radial and that the load acting on a thrust washer is purely axial and applied at the centre. Dynamic load conditions are essentially oscillating movements or rotations under load, but can include micro sliding under variable load (e.g. as a result of vibration) or operation under high frequency alternating loads. Where oscillating movements or rotation under load usually produce wear, the other conditions may result in fatigue.

Basic static load ratings

The basic static load rating C0 is defined as the maximum load that an SKF composite bushing, flanged bushing or thrust washer can support when stationary at room temperature without inadmissible permanent deformation of the sliding layer and jeopardizing its performance. It is assumed that the bearing is adequately supported by the associated components of the bearing arrangement. In order to fully exploit the static load rating of a bearing it is generally necessary to use shafts and housings made of high-strength materials. The basic static load rating should also be considered when bearings are dynamically loaded and are subjected to additional heavy shock loads. The total load in these cases must not exceed the basic static load rating.

Basic rating life

SKF Composite bushings and thrust washers

The basic rating life of a composite plain bearing is expressed in number of oscillations or revolutions, or in operating hours. It represents the operating period under test conditions that is ended when one of the criteria for the end of the basic rating life is reached. Those criteria can be:

  • increase in operating clearance
  • plastic deformation of the sliding layer
  • fatigue

A distinction is made between the basic rating life and the service life actually achieved.

The basic rating life is a guideline value that will be attained or exceeded by the majority of a large number of apparently identical bearings under the same test conditions.

The service life actually achieved by apparently identical bearings under identical operating conditions has been found to differ both in laboratory endurance tests and in service at operating conditions. These include not only the magnitude and type of load but also other factors such as contamination, corrosion, load and movement cycles of high frequency and shock loads. These factors are difficult or even impossible to quantify.

SKF Bronze, polyamide and filament wound bushings and strips

It is not meaningful to try to calculate the basic rating life for these products. In practice, the various influences and factors that affect the service life actually achieved, interact in a very complex manner and are not always completely quantifiable.
